Overview:

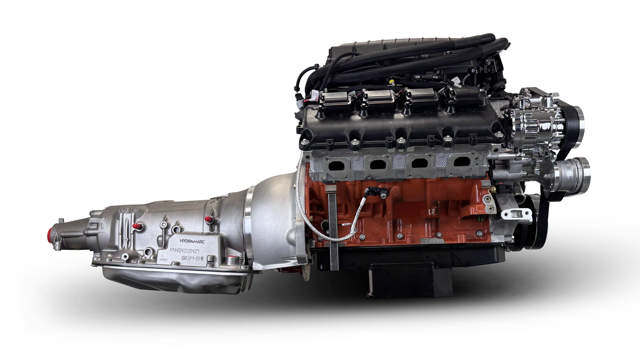

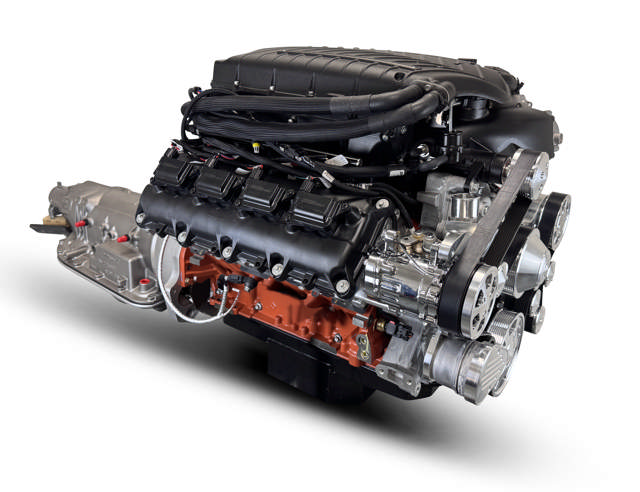

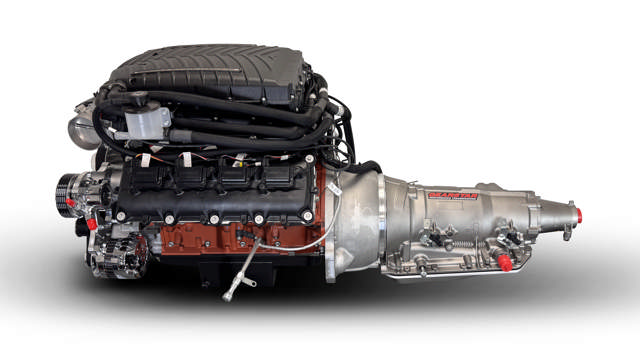

This BluePrint Engines Gen III HEMI crate engine paired with a complete 4L80E four-speed automatic transmission is a turnkey, high-performance powerhouse, producing an incredible 872 horsepower and 764 ft-lbs. of torque with a pump-gas-friendly 10.48:1 compression ratio. Built with premium internals—including a forged crank, forged pistons, and a hydraulic roller cam—and topped with Gen III HEMI Apache aluminum cylinder heads, this engine is force-fed by a Whipple 3.0L supercharger and Hellcat throttle body, backed by a dedicated supercharger coolant reservoir for consistent performance. Engine management is handled by a Holley Terminator ECU controller kit and wiring harness, providing precise control over fuel injection and ignition. Key components like spark plugs, coils, timing cover, valve covers, harmonic balancer, and a muscle car-style mid-sump oil pan make this engine swap-ready. The polished front accessory drive system includes a high-flow water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and a 7B10 peanut-style A/C compressor, blending function and show-quality looks. With the strength and overdrive capability of the 4L80E transmission, this package is ideal for high-powered street machines demanding modern reliability and supercharged performance.

Description

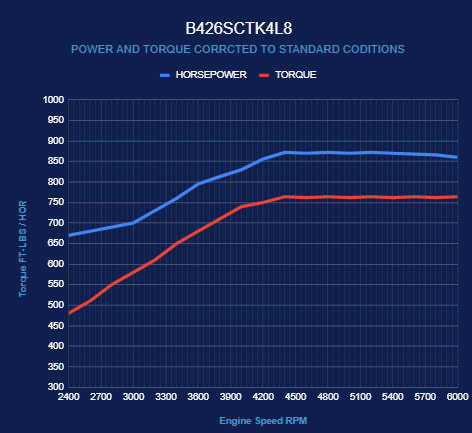

• Horsepower & Torque: 872 Horsepower / 764 ft. lbs. Torque

• Compression Ratio: 10.48:1
• Gen III Hemi Apache Aluminum Cylinder Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons


Block:

• Engine Manufactured and Machined in the USA!

• NEW “BGE” Hellcat Engine Block
• 4-Bolt Main
• 4.090" Bore
• 1-Piece Rear Main Seal


Rotating Assembly:

• Forged Steel Crank
• 4.050" Stroke
• 6.125" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear


Cylinder Heads:

• Gen III Hemi Apache Aluminum Cylinder Heads
• 73cc Chamber
• 2.140" Intake / 1.650" Exhaust Valves


Cam Specs:

• Hydraulic Roller Cam
• .614 Intake / .614 Exhaust Lift
• 231 Intake / 255 Exhaust Duration
• @.050-115.5 Degree Lobe Separation


Ignition Timing:

• Controlled by ECU

Also Includes:

• Whipple 3.0L supercharger
• Supercharger Coolant Reservoir
• Coils - BPP68238603
• Hellcat Throttle Body
• Harmonic Balancer
• Timing Cover
• Valve Covers
• Spark plugs
• Dipstick
• Oil Pump
• Muscle Car Style - Mid Sump Swap Oil Pan
• Holley Terminator ECU Controller Kit and Wiring Harness

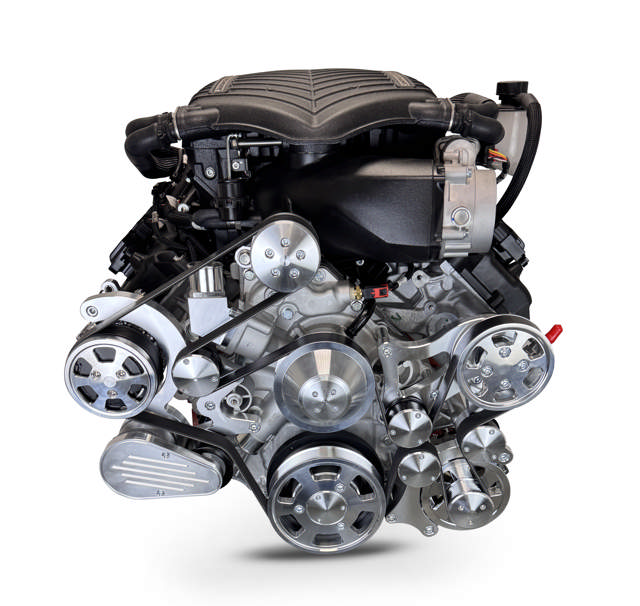

• Polished Front Accessory Drive -
  • Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Style Air Conditioning Compressor

Assembled with Complete 4L80E Four Speed Automatic Transmission Package:

• 4L80E Complete Package
• Electronic Transmission Controller Included
• 3000+ Stall Torque Converter
• Flex Plate
• Starter
  • 4L80E Gear Ratios:
    1: 2.482
  • 2: 1.482
  • 3: 1.00
  • 4: 0.750
  • R: 2.077

Notes:

• Features 2013+ 58X reluctor wheel
• 2009+ crankshaft spacing
• 2009+ car timing cover
• VVT locked out
• MDS – eliminated
