Overview:

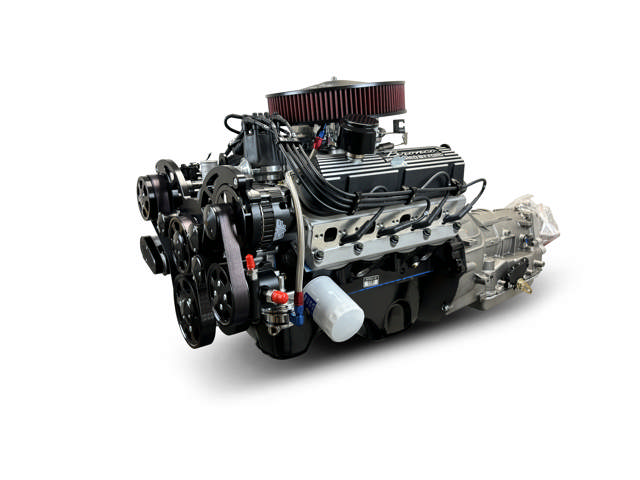

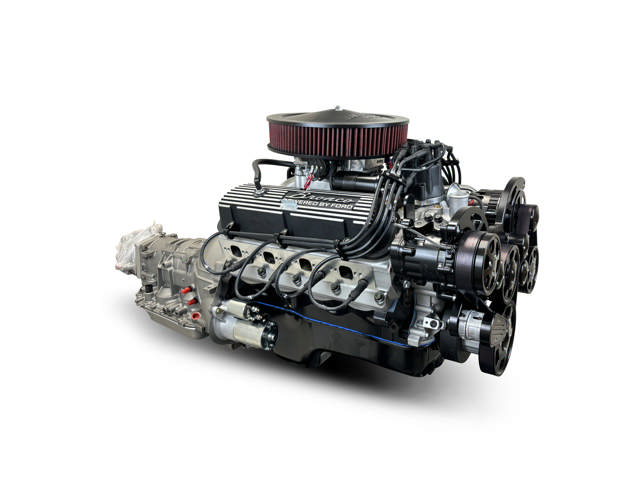

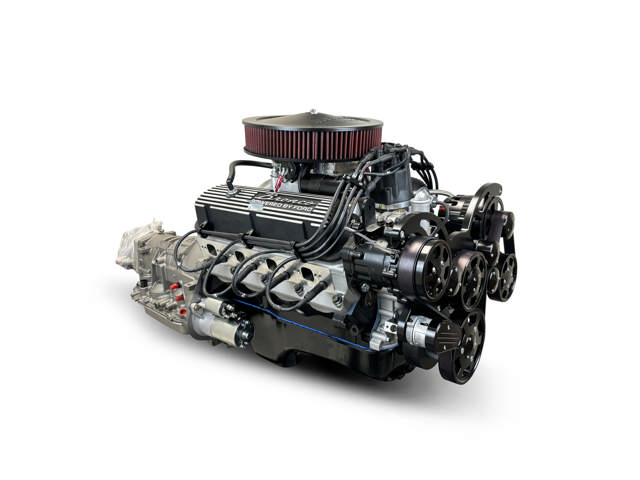

This 302 c.i. engine and 4R70W automatic transmission Builders Series package delivers 365 horsepower and 365 lb-ft of torque, combining proven small-block power with dependable street performance. Equipped with a Holley 600 CFM carburetor, it provides crisp throttle response, easy tuning, and the classic feel of a traditional carbureted setup. The performance intake manifold, distributor, spark plugs and wires, valve covers, and harmonic balancer all work together to ensure smooth, consistent power throughout the RPM range. The polished front accessory drive gives the engine a clean, professional appearance, while the driver-side standard rotation water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor provide a complete front-end system. This 302 package delivers the perfect blend of classic Ford V8 compatible performance and modern reliability — fully assembled, ready to drop in, and built to turn heads on the road or at the show.

Description:

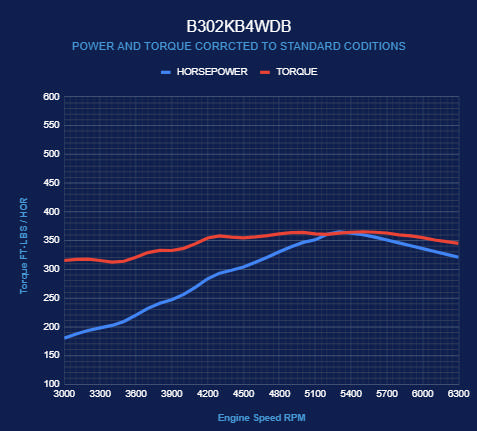

• Horsepower & Torque: 365 Horsepower / 365 ft. lbs. Torque
• Compression Ratio: 9.5:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Cast Crank
• BluePrint Engines Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• Cast Crankshaft
• 3.000" Stroke
• OEM Type 5.090" Connecting Rods
• Hypereutectic Pistons
• 50oz Externally Balanced

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .533 Intake / .544 Exhaust Lift
• 215 Intake / 220 Exhaust Duration
• @.050-114 Degree Lobe Separation

Ignition Timing:

• 34 Degrees Total at 3500 RPM

Also Includes:

• Holley 600 CFM Street Warrior Carburetor - BPP080457SA

• Dual Plane, Aluminum Intake Manifold - BPP302INT

• V-Power Spark Plugs - BPP7938
• 50 oz Harmonic Balancer - BPP50
• Pro-Series Ready Run Distributor - BPP3023BK
• Ignition Coil - BPP82021BK
• Valve Covers
• Dual/Rear Sump Oil Pan
• Fuel Pump - BPP6588

• Thermostat and Thermostat Housing

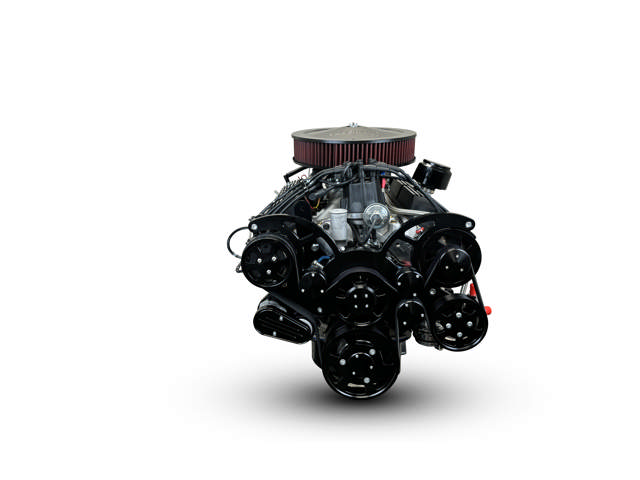

• Black Front Accessory Drive - BPP302FDACPS4BK
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete 4R70W 4WD Ready – Automatic Trans Package:

• Includes Electronic Transmission Controller
• THROTTLE POSITION SENSOR NOT INCLUDED
• Transmission Built to 650 HP
• 2200-2600 Stall Torque Converter
• Flex Plate
• Starter
• 4 Speed, Overdrive Transmission w/Lockup
• Specifically Prepped for Dana 20 Transfer Case (1966-1976). Transfer case is NOT included
• Gear Ratios
  • First: 2.84 :1
  • Second: 1.55 :1
  • Third: 1.00 :1
  • Overdrive: 0.70 :1
  • Reverse: 2.32 :1

Notes:

• Does not include TPS sensor, as varies with each install.
• Package Ships assembled.
• Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
