Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10:1
Camshaft: Hydraulic Roller Cam - .543 Intake / .554 Exhaust and 218 Intake / 226 Exhaust Duration @ .050 - 112 LSA
Pistons: Forged
Crankshaft: Cast Crank - 3.400" Stroke and Forged 5.400" Rods
Fuel Recommendation: 91+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Description:
- Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
- Compression Ratio: 10.0:1
- Aluminum Heads
- Cast Crank
- Hydraulic Roller Cam
Block:
- BluePrint Engines High Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4.000" Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Rotating Assembly:
- Cast Crank
- 3.400" Stroke
- Forged 5.400" Connecting Rods
- Forged Pistons
- 28oz Externally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - HP9009
- 60cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .543 Intake / .554 Exhaust Lift
- 218 Intake / 226 Exhaust Duration
- @.050-112 Degree Lobe Separation
Ignition Timing:
- 34 Degrees Total at 3500 RPM
Also Includes:
- Holley 600 CFM Street Warrior Carburetor - BPP080457SA
- Mustang Style Valve covers *Mustang scripted valve cover may be different than pictured based on availability*
- Thermostat and Thermostat Housing
- Dual Plane, Satin Aluminum Intake Manifold
- Pro Billet Distributor
- 7 Quart Oil Pan
- Electric Fuel Pump Black
- Black Front Accessory Drive - BPP302FDACPS4BKDriver Side Standard Rotation Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Air Conditioning Compressor
Assembled with Complete TKX Transmission Package:
- Mcleod Super Street Pro Single Disk Clutch
- Hydraulic Throw Out Bearing
- Aluminum Bell Housing
- Flywheel
- Engine Guard
- Starter
- First Gear Ratio: 2.87:1
- Second Gear Ratio: 1.89:1
- Third Gear Ratio: 1.28:1
- Fourth Gear Ratio: 1.00:1
- Fifth Gear Ratio: 0.81:1
Notes:
- Package Ships assembled as pictured.
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
Blocks
- BluePrint Engines High Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4.000" Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - HP9009
- 60cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.035 in.
Firing Order
1,3,7,2,6,5,4,8
Rotating Assembly
- Cast Crank
- 3.400" Stroke
- Forged 5.400" Connecting Rods
- Forged Pistons
- 28oz Externally Balanced Front and Rear
Cam Specs
- Hydraulic Roller Cam
- .543 Intake / .554 Exhaust Lift
- 218 Intake / 226 Exhaust Duration
- @.050-112 Degree Lobe Separation
Stall Converter
2000-2400 RPM
Also Includes
- Holley 600 CFM Street Warrior Carburetor - BPP080457SA
- Thermostat and Thermostat Housing
- Dual Plane, Satin Aluminum Intake Manifold - BPP302INT
- Pro-Series Ready Run Distributor - BPP3023BK
- Spark Plugs - BPP7938
- 28 oz Harmonic Balancer - BPP28
- Ignition Coil 45k Volt - BPP82021BK
- 7 Quart Oil Pan
- Fuel Block Off Plate - BPP42463
- Black Front Accessory Drive - BPP302FDACPS4BK
- Driver Side Standard Rotation Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Air Conditioning Compressor
- Mustang Style Valve covers *Mustang scripted valve cover may be different than pictured based on availability*
Assembled with Complete TKX Transmission Package:
- Mcleod Super Street Pro Single Disk Clutch
- Hydraulic Throw Out Bearing
- Aluminum Bell Housing
- Flywheel
- Engine Guard
- Starter
- First Gear Ratio: 2.87:1
- Second Gear Ratio: 1.89:1
- Third Gear Ratio: 1.28:1
- Fourth Gear Ratio: 1.00:1
- Fifth Gear Ratio: 0.81:1
Notes
- Package Ships assembled as pictured.
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM

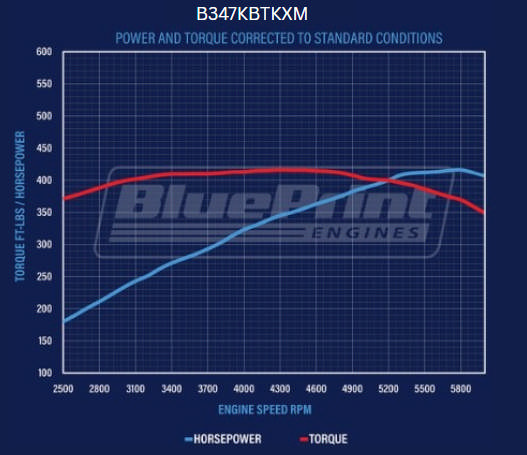

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Dual Plane, Satin Aluminum Intake Manifold - BPP302INT |
|---|---|
| Spark Plug | BPP7938 NGK 7938 BKR5E |
| Harmonic Balancer | 28 oz Harmonic Balancer - BPP28 |
| Flexplate/Flywheel | BPPF157T28 |
| Fuel Recommendation | 91+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP21085 - BPP51515 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 7 Quarts |
Header Partners:
- Click Here for our Header Partners and recommendations.
Better Than the Rest.
The satisfaction of our customers is our highest priority at BluePrint Engines. Every engine we build is assembled with premium components, balanced to within two grams, and dyno-tested to verify real horsepower and torque before it leaves our facility.
All BluePrint products include warranty protection designed specifically for how they're used. Our complete crate engines carry our industry-leading 30-month / 50,000-mile warranty, offering the confidence and peace of mind serious builders expect. Other BluePrint products—including bare blocks, marine engines, transmissions, race applications, and cylinder heads—feature warranty coverage tailored to their intended use and operating conditions.
For full terms and specific coverage by product category, download our warranty guide below. It contains complete details, limitations, and instructions for warranty registration and claims.
Already Own this engine?
Protect your investment by registering your warranty today. Register below to ensure coverage and stay up to date on important service information.
Register NowEVERY BLUEPRINT ENGINE ACES THE DYNO TEST
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer in our in-house dyno testing rooms to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That’s precisely why our engines sound and run better than our competitors.
All specs, zero speculation: A comprehensive, dyno-generated printout showing your critical engine specs will accompany your delivered engine — every time. No more guessing or wondering what your installed engine’s real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash ‘em your exact engine’s dyno results.
