Overview:

This 347 c.i. engine and TKX manual transmission Builders Series package delivers 415 horsepower and 415 lb-ft of torque, combining proven small-block power with dependable street performance. Equipped with a Holley 600 CFM carburetor, it provides crisp throttle response, easy tuning, and the classic feel of a traditional carbureted setup. The performance intake manifold, distributor, spark plugs and wires, valve covers, and harmonic balancer all work together to ensure smooth, consistent power throughout the RPM range. The polished front accessory drive gives the engine a clean, professional appearance, while the driver-side standard rotation water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor provide a complete front-end system. This 347-package delivers the perfect blend of classic Ford V8 compatible performance and modern reliability — fully assembled, ready to drop in, and built to turn heads on the road or at the show.

Description:

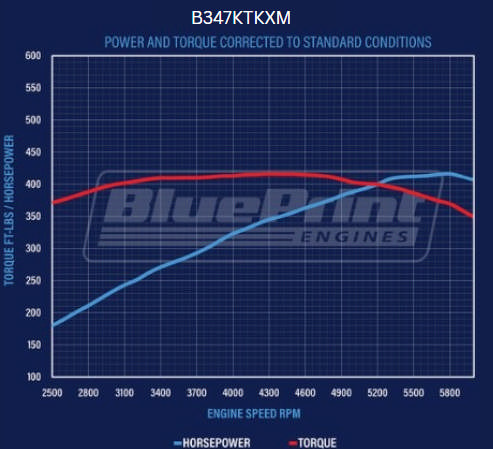

• Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Cast Crank
• BluePrint Engines Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main
• 1-piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• Cast Crankshaft
• 3.400" Stroke
• Forged I-Beam 5.400" Connecting Rods
• Forged Pistons
• 28oz Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 65cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .543 Intake / .554 Exhaust Lift
• 218 Intake / 226 Exhaust Duration
• @.050-112 Degree Lobe Separation

Ignition Timing:

• 34 Degrees Total at 3500 RPM

Also Includes:

• Holley 600 CFM Street Warrior Carburetor - BPP080457SA

• Dual Plane, Satin Aluminum Intake Manifold - BPP302INT

• Pro-Series Ready Run Distributor - BPP3023BK

• 7 Quart Oil Pan
• Fuel Pump Block Off Plate - BPP42463
• Ignition Coil 45k Volt - BPP82021BK
• 28 oz Harmonic Balancer - BPP28
• Spark Plugs - BPP7938
• Spark Plug Wires
• Thermostat and Thermostat Housing

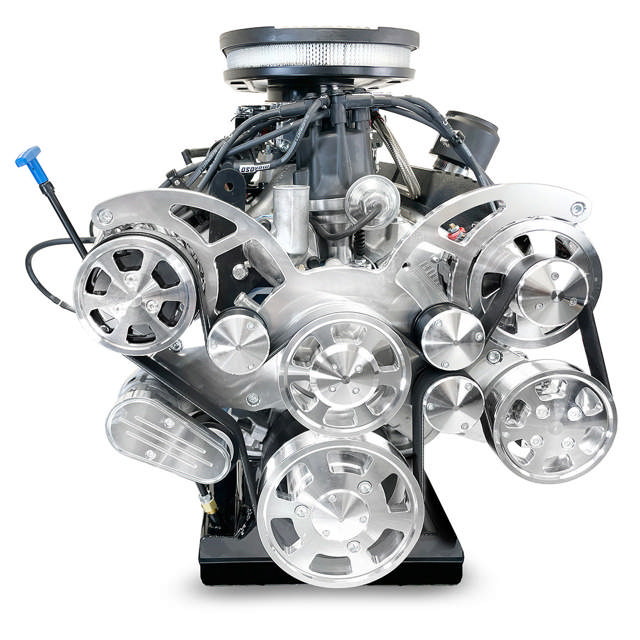

  • Polished Front Accessory Drive - BPP302FDACPS4Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor
• Mustang Style Valve covers *Mustang scripted valve cover may be different than pictured based on availability*

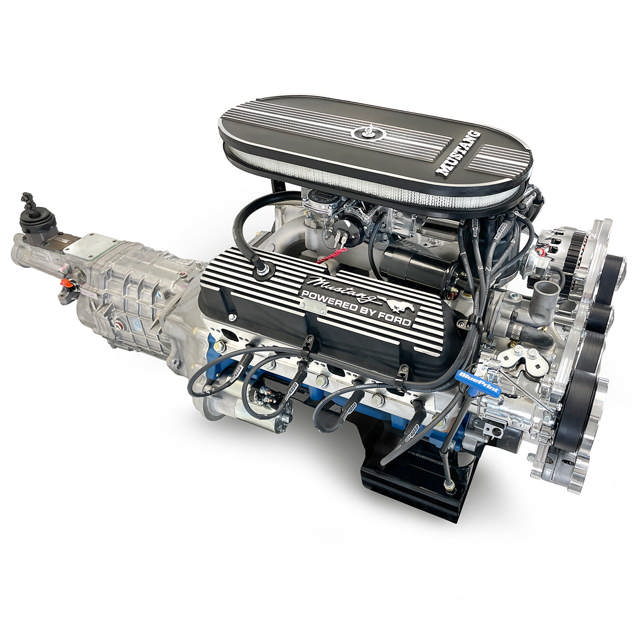

Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro Single Disk Clutch
• Hydraulic Throw Out Bearing
• Aluminum Bell Housing
• Flywheel
• Engine Guard
• Starter
  • First Gear Ratio: 2.87:1
  • Second Gear Ratio: 1.89:1
  • Third Gear Ratio: 1.28:1
  • Fourth Gear Ratio: 1.00:1
  • Fifth Gear Ratio: 0.81:1

Notes:

• Package Ships assembled as pictured.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
