Overview:

BluePrint Engines’ 427 C.I. Ford Cobra Edition Builder Series brings iconic Cobra style and modern performance together in one powerhouse package. Featuring the Holley 870 cfm Carburetor, this engine delivers both old-school attitude and modern drivability. Dressed with ribbed Cobra-style aluminum valve covers, a polished front accessory drive, and an aluminum oval air cleaner with Cobra script, it looks every bit as fierce as it runs. Completing the package are premium components including a powder-coated oil pan, harmonic balancer, spark plugs and wires, and detailed finishes like plug wire separators and a thermostat housing—engineered and ready for those who demand performance with unmistakable Ford heritage.

Description:

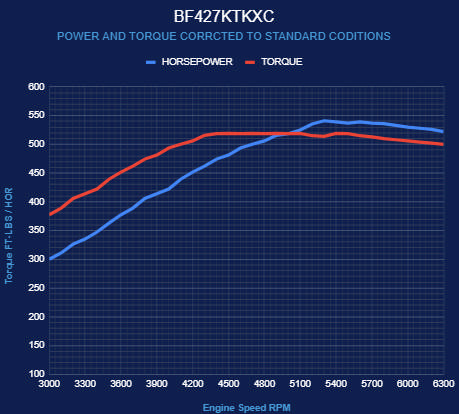

• Horsepower & Torque: 541 Horsepower / 519ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• BluePrint Engines' High Strength Cast Iron Block

• 4-Bolt Main
• 4.125" Bore
• 1-Piece Rear Main Seal
• 9.500 Deck Height

Rotating Assembly:

• Forged Crankshaft
• 4.000" Stroke
• Forged 6.250" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• Aluminum Cylinder Heads
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 205cc Intake / 70cc Exhaust Runners

Cam Specs:

• Hydraulic Roller Cam
• .608 Intake / .608 Exhaust Lift
• 248 Intake / 258 Exhaust Duration
• @.050-114 Degree Lobe Separation

Also Includes:

• 870 cfm Holley Carburetor
• Ribbed Cobra Style Aluminum Valve Covers
• Pro-Series Ready Run Distributor - BPP3513BK
• Aluminum Oval Air Cleaner with Cobra Script
• Ignition Coil 45k Volt - BPP82021BK
• 28 oz Harmonic Balancer - BPP28

• Front Sump Powder Coated Oil Pan
• Thermostat and Thermostat Housing
• Plug Wire Separators
• Victor Intake Manifold
• Spark Plugs - BPP7938
• Spark Plug Wires
• Timing Cover
• Oil Filter
• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor


Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro single disk clutch
• Hydraulic throw out bearing
• Steel bell housing
• Billet flywheel
• Engine guard
• Starter
• Gear Ratio:
  • First Gear Ratio: 2.87:1
  • Second Gear Ratio: 1.89:1
  • Third Gear Ratio: 1.28:1
  • Fourth Gear Ratio: 1.00:1
  • Fifth Gear Ratio: 0.81:1

Notes:

•  Package Ships assembled as pictured.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
