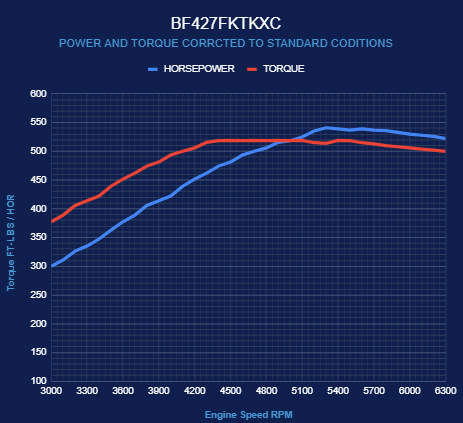

Horsepower & Torque: 541 Horsepower / 519 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10:1
Camshaft: Hydraulic Roller Cam - .608 Intake / .608 Exhaust and 248 Intake / 258 Exhaust Duration @.050–114 LSA
Pistons: Forged
Crankshaft: Forged Crank – 4.000" Stroke and Forged 6.250" Rods
Fuel Recommendation: 91+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:

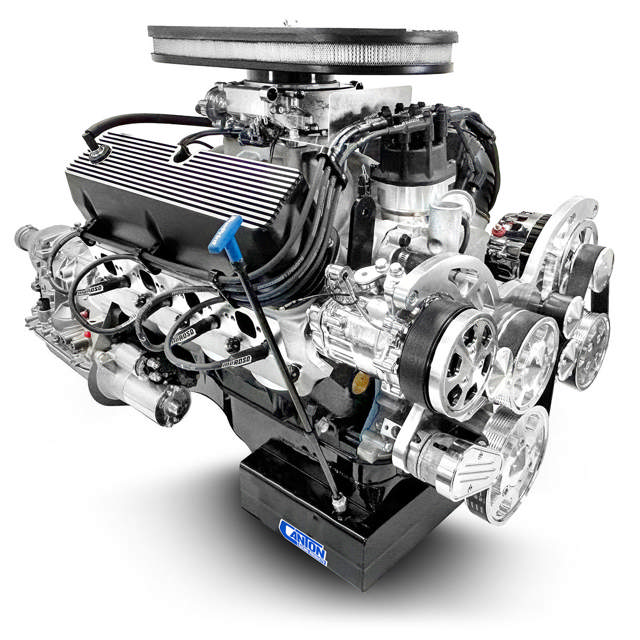

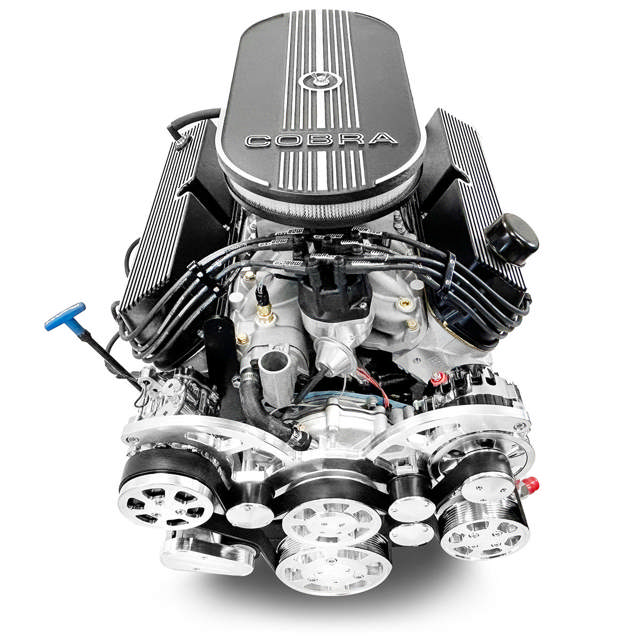

BluePrint Engines’ 427 C.I. Ford Cobra Edition Builder Series brings iconic Cobra style and modern performance together in one powerhouse package. Featuring the Holley Sniper 2 EFI System for reliable, instant starts and crisp throttle response, this engine delivers both old-school attitude and modern drivability. Dressed with ribbed Cobra-style aluminum valve covers, a polished front accessory drive, and an aluminum oval air cleaner with Cobra script, it looks every bit as fierce as it runs. Completing the package are premium components including a powder-coated oil pan, harmonic balancer, spark plugs and wires, EFI fuel pump kit, and detailed finishes like plug wire separators and a thermostat housing—engineered and ready for those who demand performance with unmistakable Ford heritage.
Description:
- Horsepower & Torque: 541 horsepower / 519ft. lbs. Torque
- Compression Ratio: 10.0:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines' High Strength Cast Iron Block
- 4-Bolt Main
- 4.125" Bore
- 1-Piece Rear Main Seal
- 9.500 Deck Height
Rotating Assembly:
- Forged Crankshaft
- 4.000" Stroke
- Forged 6.250" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- Aluminum Cylinder Heads
- 60cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 205cc Intake / 70cc Exhaust Runners
Cam Specs:
- Cam Type: Roller
- .608 Intake / .608 Exhaust Lift
- 248 Intake / 258 Exhaust Duration
- @.050-114 Degree Lobe Separation
Also Includes:
- Holley Sniper 2 EFI System - BPP550-510-3XX
- Ribbed Cobra Style Aluminum Valve Covers
- Pro-Series Ready Run Distributor - BPP3513BK
- Aluminum Oval Air Cleaner with Cobra Script
- Ignition Coil 45k Volt - BPP82021BK
- 28 oz Harmonic Balancer - BPP28
- Front Sump Powder Coated Oil Pan
- Thermostat and Thermostat Housing
- EFI Fuel Pump Kit - BPP5267
- Plug Wire Separators
- Victor Intake Manifold
- Spark Plugs - BPP7938
- Spark Plug Wires
- Timing Cover
- Oil Filter
- Polished Front Accessory Drive - BPP302FDACPS4
- Driver Side Standard Rotation Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Air Conditioning Compressor
Assembled with Complete TKX Transmission Package:
- Mcleod Super Street Pro Single Disk Clutch
- Hydraulic Throw Out Bearing
- Steel Bell Housing
- Billet Flywheel
- Engine Guard
- Starter
- Gear Ratio:
- First Gear Ratio: 2.87:1
- Second Gear Ratio: 1.89:1
- Third Gear Ratio: 1.28:1
- Fourth Gear Ratio: 1.00:1
- Fifth Gear Ratio: 0.81:1
Notes:
- Package Ships assembled as pictured.
- If this is being ordered for a Factory Five Vehicle, STOP and call us at 1-800-483-4263 for Proper Fitment Or visit FactoryFiveEngines.com
Blocks
- BluePrint Engines' High Strength Cast Iron Block
- 4-Bolt Main
- 4.125" Bore
- 1-Piece Rear Main Seal
- 9.500 Deck Height
Cylinder Heads
- Aluminum Cylinder Heads
- 60cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 205cc Intake / 70cc Exhaust Runners
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.035 in.
Firing Order
1,3,7,2,6,5,4,8
Rotating Assembly
- Forged Crankshaft
- 4.000" Stroke
- Forged 6.250" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cam Specs
- Hydraulic Roller
- .608 Intake / .608 Exhaust Lift
- 248 Intake / 258 Exhaust Duration
- @.050-114 Degree Lobe Separation
Stall Converter
2200-2600 RPM
Also Includes
- Holley Sniper 2 EFI System - BPP550-510-3XX
- Ribbed Cobra Style Aluminum Valve Covers
- Pro-Series Ready Run Distributor - BPP3513BK
- Aluminum Oval Air Cleaner with Cobra Script
- Ignition Coil 45k Volt - BPP82021BK
- 28 oz Harmonic Balancer - BPP28
- Front Sump Powder Coated Oil Pan
- Thermostat and Thermostat Housing
- EFI Fuel Pump Kit - BPP5267
- Plug Wire Separators
- Victor Intake Manifold
- Spark Plugs - BPP7938
- Spark Plug Wires
- Timing Cover
- Oil Filter
- Polished Front Accessory Drive - BPP302FDACPS4
- Driver Side Standard Rotation Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Air Conditioning Compressor
Assembled with Complete TKX Transmission Package:
- Mcleod Super Street Pro Single Disk Clutch
- Hydraulic Throw Out Bearing
- Steel Bell Housing
- Billet Flywheel
- Engine Guard
- Starter
- Gear Ratio:
- First Gear Ratio: 2.87:1
- Second Gear Ratio: 1.89:1
- Third Gear Ratio: 1.28:1
- Fourth Gear Ratio: 1.00:1
- Fifth Gear Ratio: 0.81:1
Notes
- Package Ships assembled as pictured.
- If this is being ordered for a Factory Five Vehicle, STOP and call us at 1-800-483-4263 for Proper Fitment Or visit FactoryFiveEngines.com
Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Single Plane, Satin Aluminum, Victor Intake Manifold |
|---|---|
| Spark Plug | BPP7938 NGK 7938 BKR5E |
| Harmonic Balancer | 28 oz Harmonic Balancer - BPP28 |
| Flexplate/Flywheel | BPPF157T28 |
| Fuel Recommendation | 91+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP21085 - BPP51515 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 9 Quarts |
