Overview:

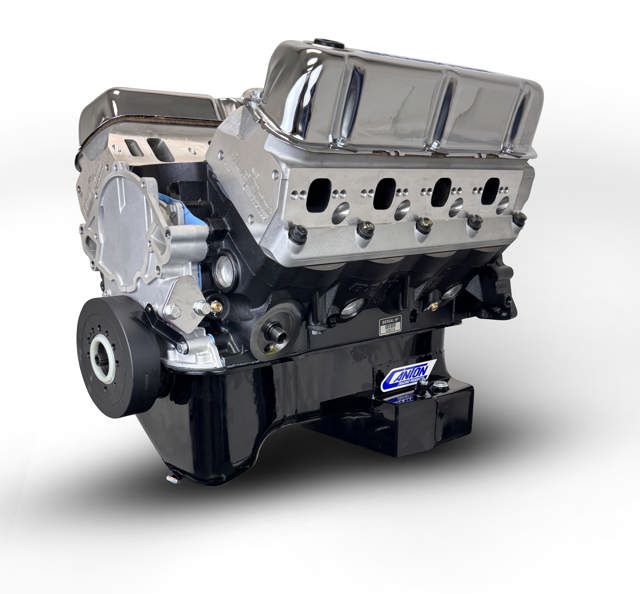

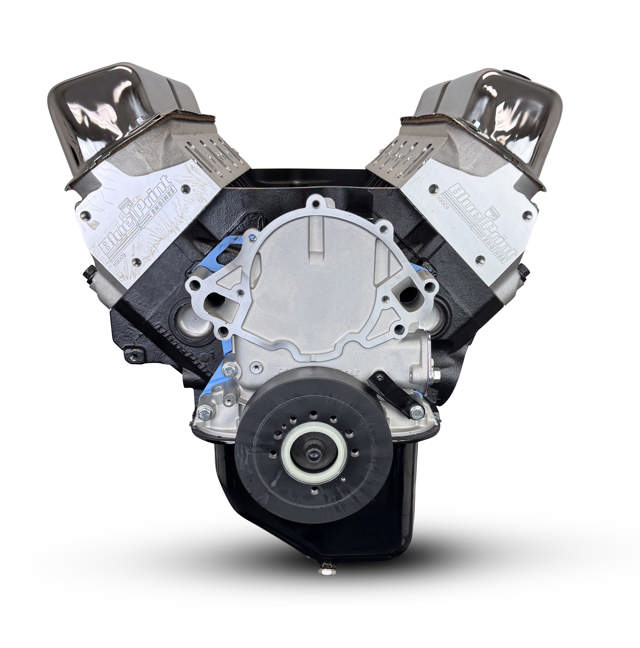

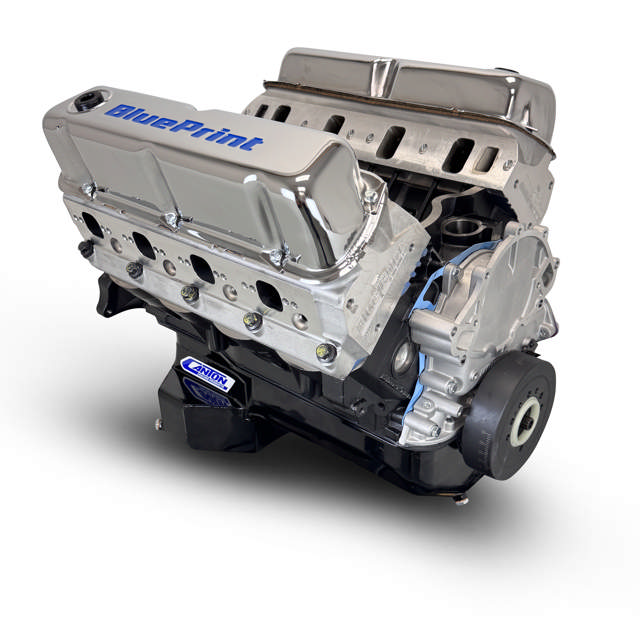

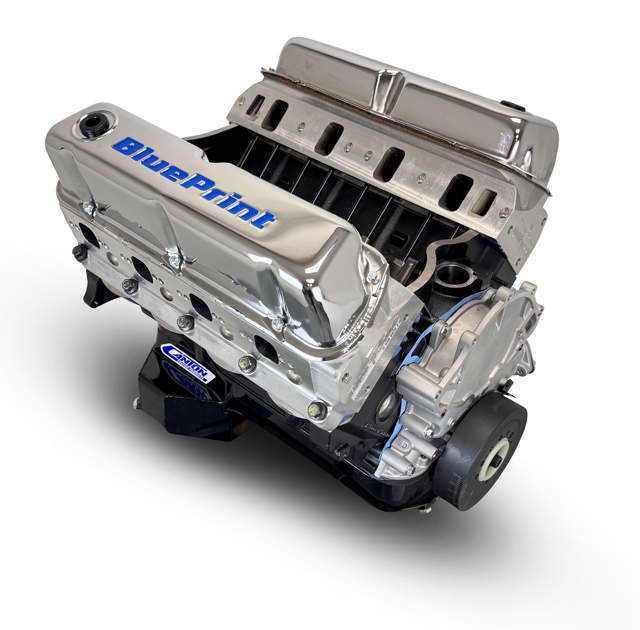

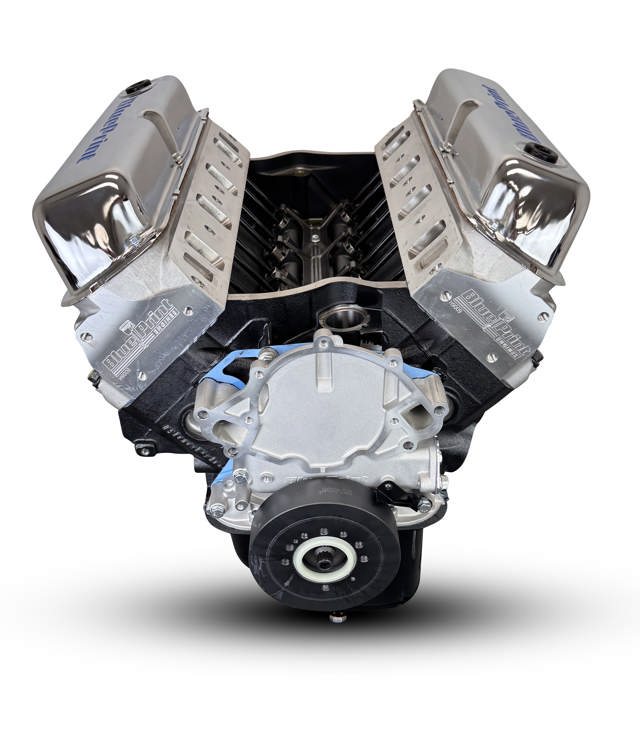

BluePrint Engines 427 c.i. Ford-compatible long block is built for enthusiasts who want serious small-block power with room to make it their own. Pumping out 541 horsepower and 519 lb-ft of torque, this engine delivers the kind of throttle response and street manners gearheads crave. It comes loaded with performance heads, valve covers, a rear sump oil pan, timing cover, and dipstick, everything you need for a solid foundation. But the real beauty of this setup is that it’s fully customizable, you choose how it’s finished out. Whether you’re going carb or EFI, chasing street performance or track times, this 347 gives you the flexibility to build your Ford your way, without compromise.

Description:

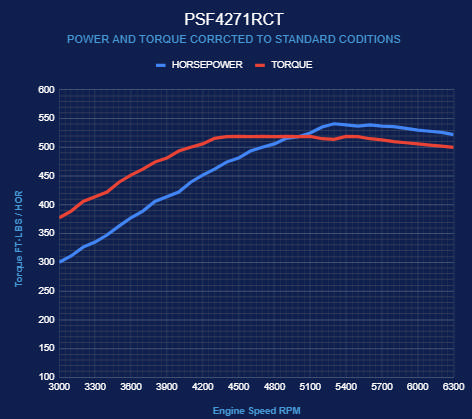

• Horsepower & Torque: 541 Horsepower / 519 ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• BluePrint Engines' High Strength Cast Iron Block
• 4.125" Bore
• 4-Bolt Main

• 1-Piece Rear Main Seal


Rotating Assembly:

• Forged Crankshaft
• 4.000" Stroke
• Forged 6.2" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• Aluminum Cylinder Heads

• 2.08" Intake/1.60" Exhaust Valves
• 205cc Intake/70cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .608 Intake .608 Exhaust
• 248 Intake / 258 Exhaust Duration
• @ .050 - 114-degree Lobe Separation

Also Includes:

• Valve Covers - BPP9237
• Timing Cover - BPP302351TC
• 28 oz Harmonic Balancer - BPP28
• Rear Sump Oil Pan
• BluePrint Dipstick
