Overview:

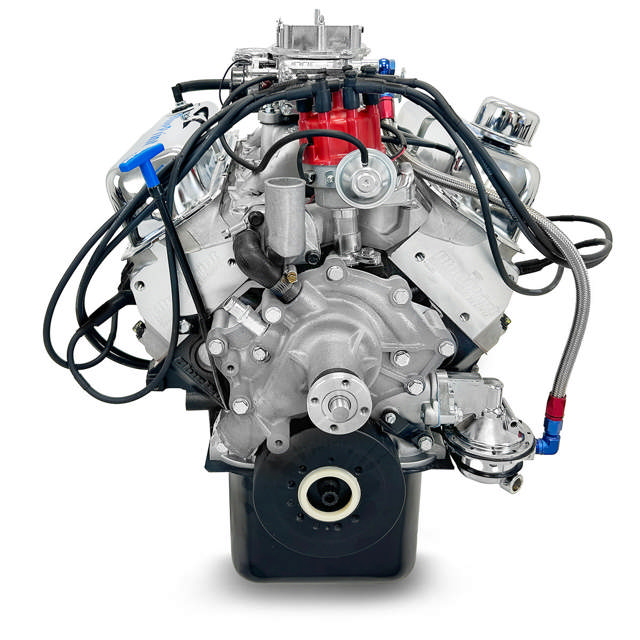

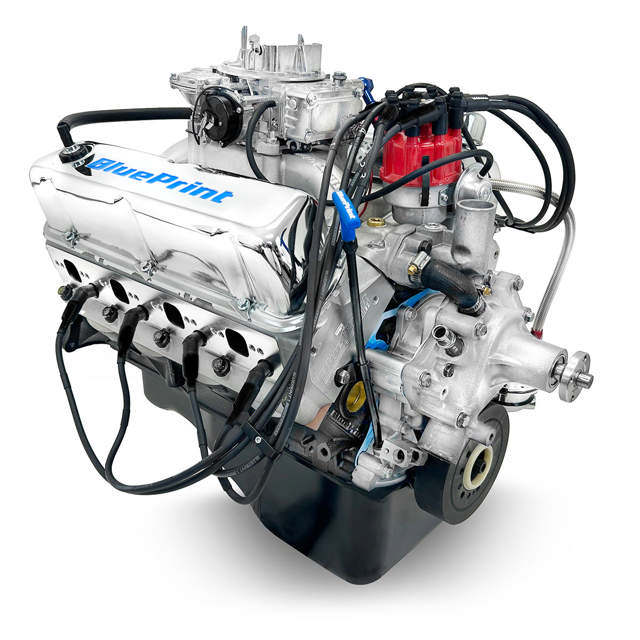

BluePrint Engines’ 302 Ford-compatible crate engine is built for dependable power and smooth street performance. Producing 361 horsepower and 334 ft. lbs. of torque, it offers plenty of punch while running easily on 87 octane fuel. Featuring a high-strength block, BluePrint aluminum heads, and a hydraulic roller cam, this engine delivers a strong, reliable combination that’s ideal for cruising or daily driving. It comes complete with a front sump oil pan, valve covers, timing cover, and dipstick. Includes a traditional Holley 600 CFM carburetor for classic throttle response. This 302 is designed to work perfectly with power brakes, stock torque converters, and stock gearing, giving you classic Ford performance with modern reliability.

Description:

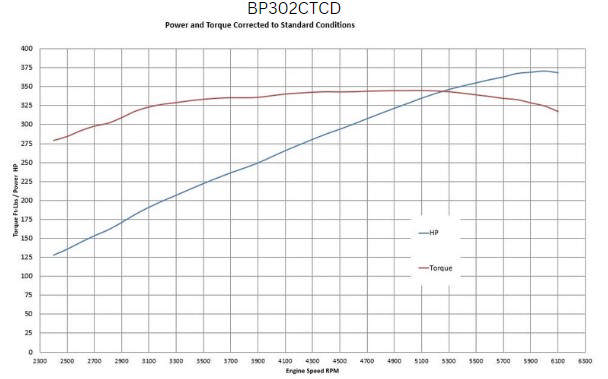

• Horsepower & Torque: 361 Horsepower / 334 ft. lbs. Torque
• Compression Ratio: 9.4:1
• BluePrint Engines Aluminum Heads
• BluePrint Hydraulic Roller Cam
• BluePrint Engines Cast Crank
• BluePrint Engines Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• Cast Crank
• 3.000" Stroke
• OEM Type 5.090" Connecting Rods
• Hypereutectic Pistons
• 50oz Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9008
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Hydraulic Roller Cam
• .533 Intake / .544 Exhaust Lift
• 215 Intake / 220 Exhaust Duration
• @.050–114 Degree Lobe Separation

Ignition Timing:

• 10-16 Degrees Initial, 32-34 Total

Also Includes:

• Holley 600 CFM Street Warrior Carburetor - BPP080457SA

• Standard Rotation Water Pump - BPP16230
• Intake Manifold - BPP302INT

• Pro-Series Ready Run Distributor - BPP3023BK
• 50oz Harmonic Balancer - BPP50
• Front Sump Oil Pan - BPP302FSPAN
• BluePrint Logo'd Valve Covers - BPP9237
• BluePrint Timing Cover - BPP302351TC
• Fuel Pump - BPP6588
• BluePrint Dipstick - BPP6920
• Thermostat and Thermostat Housing
• Spark Plugs - BPP7938
• Spark Plug Wires
• 9" Air Cleaner

Notes:

• Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
• This engine is an excellent cruiser and daily driver engine. This engine makes up to 13 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
