Overview:

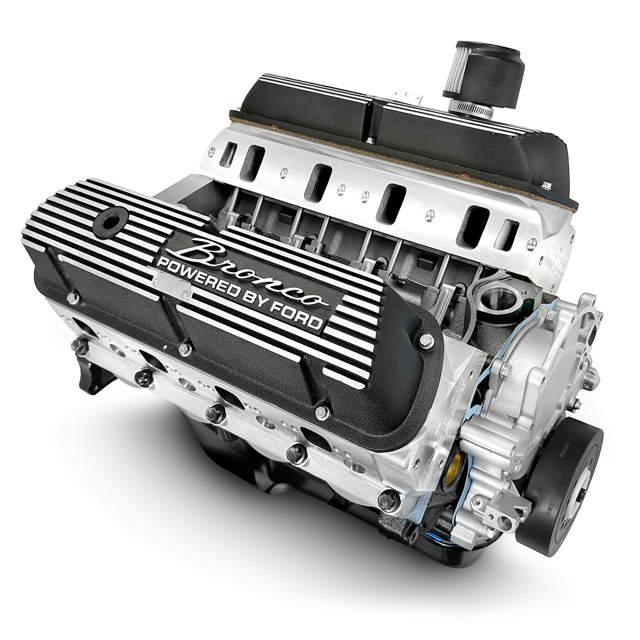

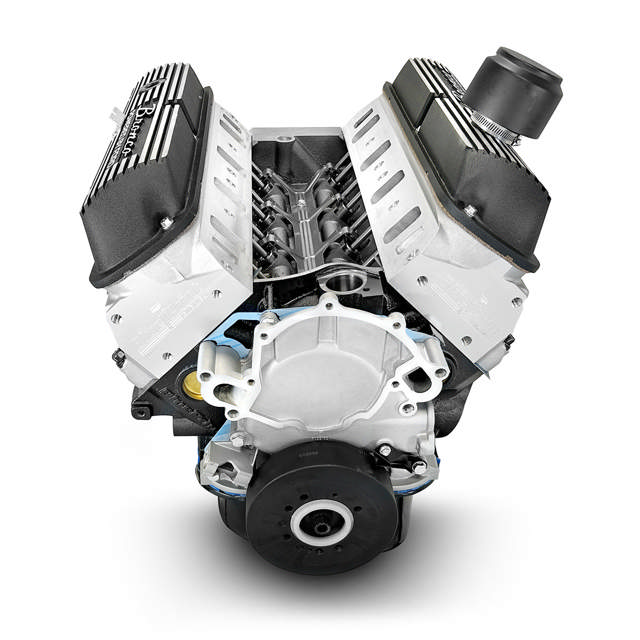

This 302 Ford-compatible Bronco long block is built to deliver classic small-block power with modern reliability. Producing 365 horsepower and 365 ft. lbs. of torque, it strikes a perfect balance between street-friendly drivability and trail-ready performance. Featuring a 9.5:1 compression ratio, durable hypereutectic pistons, and a cast crank, this engine is engineered for dependable power under any condition. Aluminum heads and a hydraulic roller cam add smooth performance, strong throttle response, and lasting durability—making it an ideal foundation for your next Bronco build or restoration.

Description:

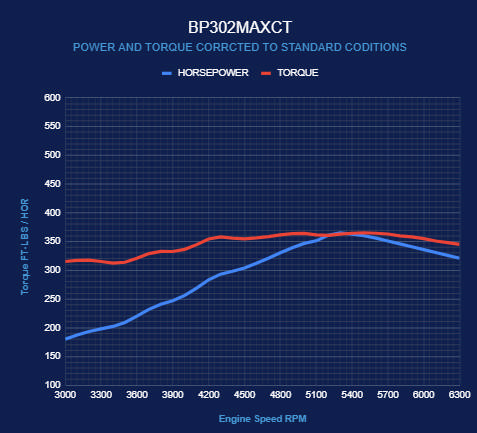

• Horsepower & Torque: 365 Horsepower / 365 ft. lbs. Torque
• Compression Ratio: 9.5:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Cast Crank
• BluePrint Engines Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• Cast Crankshaft
• 3.000" Stroke
• OEM Type 5.090" Connecting Rods
• Hypereutectic Pistons
• 50oz Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads -HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .533 Intake / .544 Exhaust Lift
• 215 Intake / 220 Exhaust Duration
• @.050-114 Degree Lobe Separation

Ignition Timing:

• 10-16 Degrees Initial, 32-34 Total

Also Includes:

• Bronco Script Valve Covers
• 50oz Harmonic Balancer - BPP50
• Dual/Rear Sump Oil Pan - BPP302RSPAN
• BluePrint Timing Cover - BPP302351TC
• BluePrint Dipstick - BPP6750

Notes:

• Not for EGR
• Engine timing cover is designed for standard rotation water pump ONLY
• Push in Valve Cover Breather not included. BluePrint Engines recommends PN B6AZ-6766-B or similar.
