Horsepower & Torque: 361 Horsepower / 334 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 9.4:1
Camshaft: Hydraulic Roller Cam - .533 Intake / .544 Exhaust Lift and 215 Intake / 220 Exhaust Duration @ .050 - 114° LSA
Pistons: Hypereutectic
Crankshaft: Cast Crank - 3.000" Stroke and 5.090" Rods
Fuel Recommendation: 87+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:

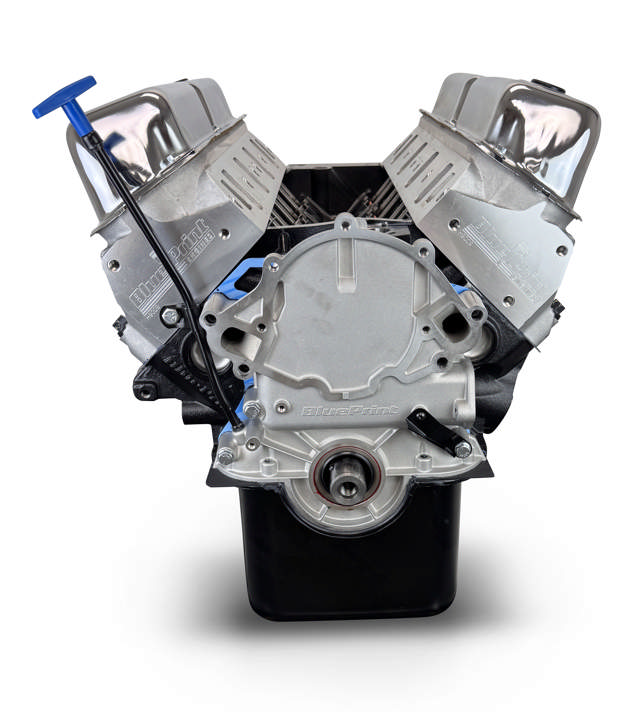

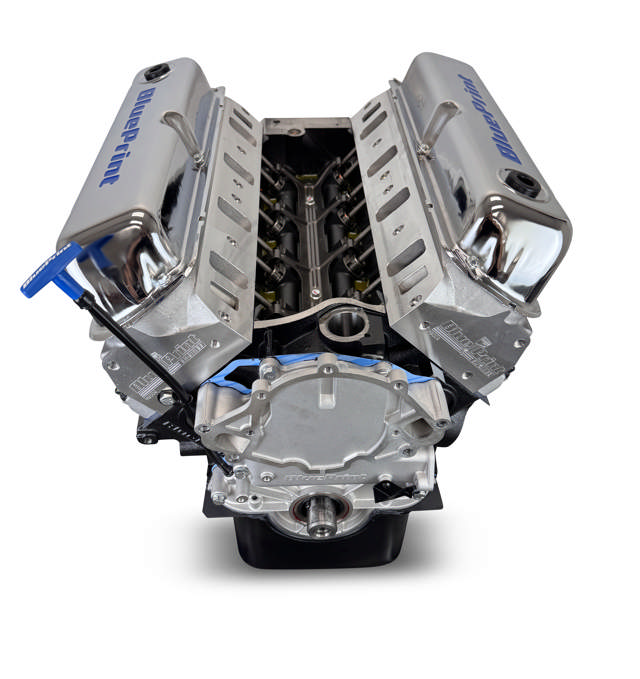

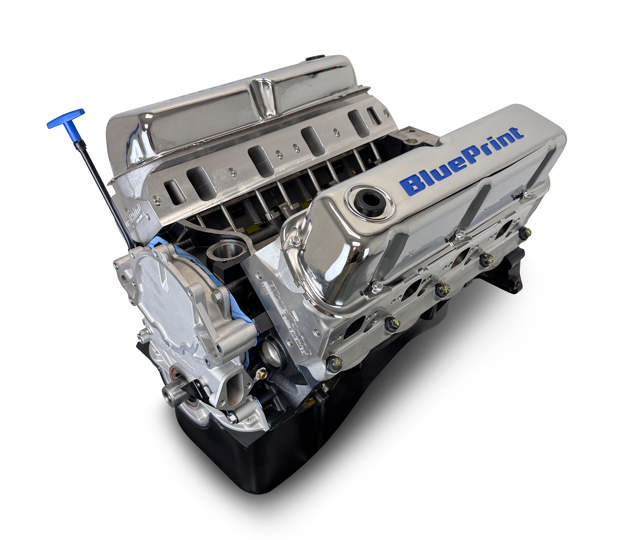

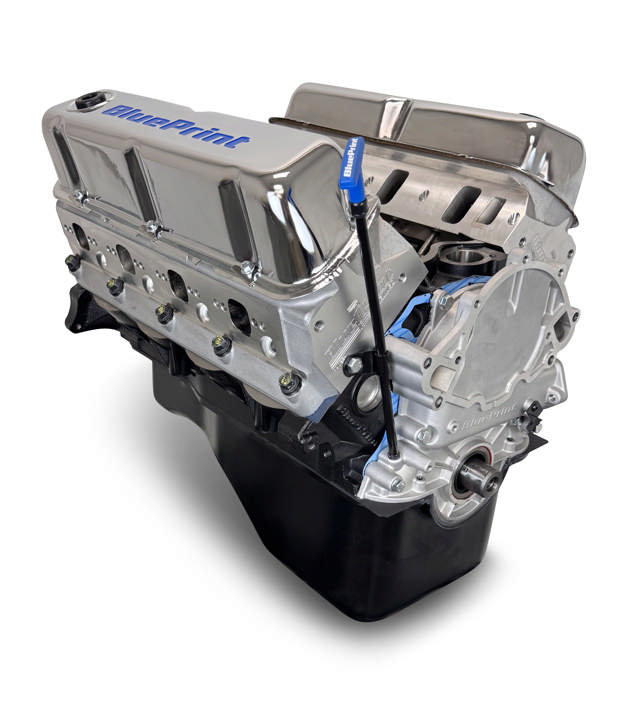

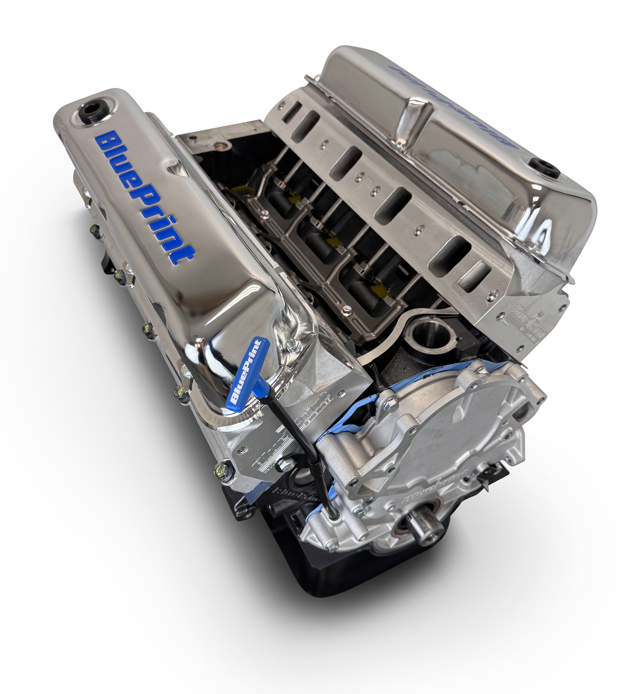

BluePrint Engines’ 302 Ford-compatible crate engine is built for dependable power and everyday drivability. With 361 horsepower and 334 ft. lbs. of torque, it delivers plenty of punch while running smoothly on 87 octane fuel. It features a durable high-strength block, aluminum heads, and a hydraulic roller cam for reliable performance and easy maintenance. This engine is designed to work great with power brakes, stock torque converters, and gearing—making it an excellent choice for a cruiser or daily driver. Complete with a front sump oil pan, valve covers, timing cover, and dipstick, this 302 is ready to drop in and deliver classic Ford performance with modern reliability.
Description:
- Horsepower & Torque: 361 Horsepower / 334 ft. lbs. Torque
- Compression Ratio: 9.4:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Cast Crank
- BluePrint Engines Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4.000" Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Rotating Assembly:
- Cast Crank
- 3.000" Stroke
- OEM Type 5.090" Connecting Rods
- Hypereutectic Pistons
- 50oz Externally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - HP9008
- 60cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .533 Intake / .544 Exhaust Lift
- 215 Intake / 220 Exhaust Duration
- @.050-114 Degree Lobe Separation
Ignition Timing:
- 10-16 Degrees Initial, 32-34 Total
Also Includes:
- Front Sump Oil Pan - BPP302FSPAN
- BluePrint Logo'd Valve Covers - BPP9237
- BluePrint Timing Cover - BPP302351TC
- BluePrint Dipstick - BPP6920
Notes:
- Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
- This engine is an excellent cruiser and daily driver engine. This engine makes up to 13 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
Blocks
- BluePrint Engines High Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4.000" Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - HP9008
- 60cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.035 in.
Firing Order
1,3,7,2,6,5,4,8
Rotating Assembly
- Cast Crank
- 3.000" Stroke
- OEM Type 5.090" Connecting Rods
- Hypereutectic Pistons
- 50oz Externally Balanced Front and Rear
Cam Specs
- Hydraulic Roller Cam
- .533 Intake / .544 Exhaust Lift
- 215 Intake / 220 Exhaust Duration
- @.050-114 Degree Lobe Separation
Stall Converter
OEM - 1800 RPM
Also Includes
- Front Sump Oil Pan - BPP302FSPAN
- BluePrint Logo'd Valve Covers - BPP9237
- BluePrint Timing Cover - BPP302351TC
- BluePrint Dipstick - BPP6920
Notes
- Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
- This engine is an excellent cruiser and daily driver engine. This engine makes up to 13 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel.

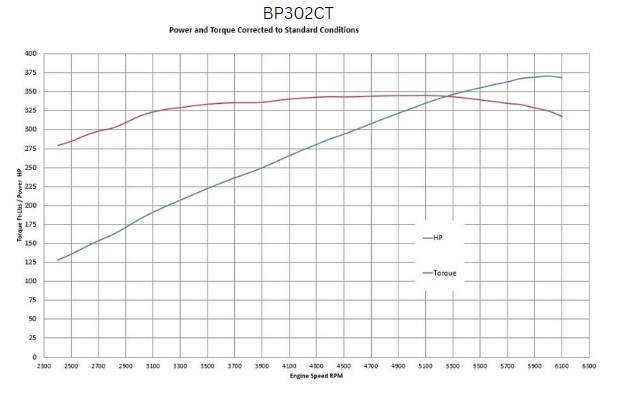

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold (Not Included) | N/A |
|---|---|
| Spark Plug (Not Included) | BPP7938 - NGK 7938 BKR5E |
| Harmonic Balancer (Not Included) | BPP50 |
| Flexplate/Flywheel (Not Included) | BPP529610 - BPPF50164 |
| Fuel Recommendation | 87+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP21085 - BPP51515 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 5 Quarts |
Header Partners:
- Click Here for our Header Partners and recommendations.
Better Than the Rest.
The satisfaction of our customers is our highest priority at BluePrint Engines. Every engine we build is assembled with premium components, balanced to within two grams, and dyno-tested to verify real horsepower and torque before it leaves our facility.
All BluePrint products include warranty protection designed specifically for how they're used. Our complete crate engines carry our industry-leading 30-month / 50,000-mile warranty, offering the confidence and peace of mind serious builders expect. Other BluePrint products—including bare blocks, marine engines, transmissions, race applications, and cylinder heads—feature warranty coverage tailored to their intended use and operating conditions.
For full terms and specific coverage by product category, download our warranty guide below. It contains complete details, limitations, and instructions for warranty registration and claims.
Already Own this engine?
Protect your investment by registering your warranty today. Register below to ensure coverage and stay up to date on important service information.
Register NowEVERY BLUEPRINT ENGINE ACES THE DYNO TEST
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer in our in-house dyno testing rooms to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That’s precisely why our engines sound and run better than our competitors.
All specs, zero speculation: A comprehensive, dyno-generated printout showing your critical engine specs will accompany your delivered engine — every time. No more guessing or wondering what your installed engine’s real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash ‘em your exact engine’s dyno results.
