Overview:

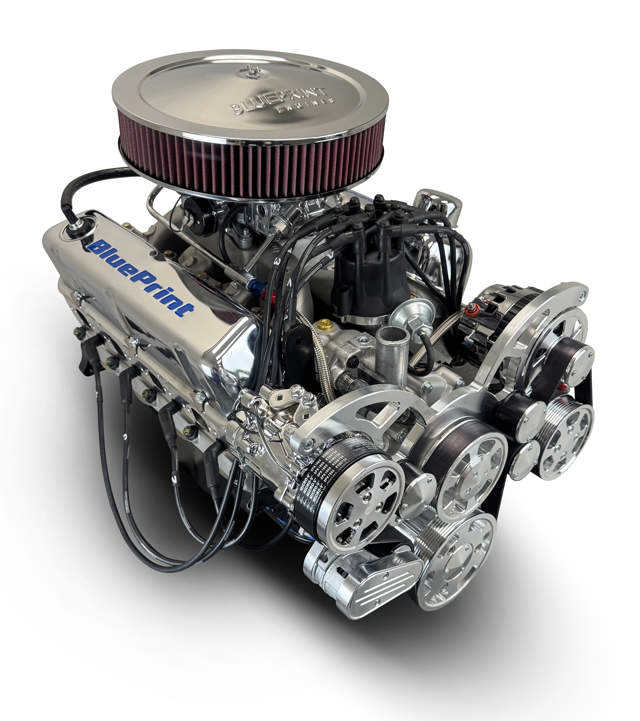

BluePrint Engines’ 347 C.I. Ford-compatible engine delivers big power in a small-block package — the perfect upgrade for those who demand modern performance with classic Ford attitude. This stroker is built to pack a punch, offering the kind of torque and throttle response that turns any build into a street or strip standout. Each engine comes ready with a Rear Sump Oil Pan, Intake Manifold, Holley 670cfm Brawler Carburetor, Distributor, Spark Plugs and Wires, Water Pump, Harmonic Balancer, Valve Covers, Timing Cover, and Thermostat with Housing — all designed for reliable, plug-and-play performance. The polished front accessory drive gives the engine a clean, professional appearance, while the driver-side standard rotation water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor provide a complete front-end system. With premium components and customization options available, this 347 delivers the perfect blend of proven power and next-level drivability for your Ford project.

Description:

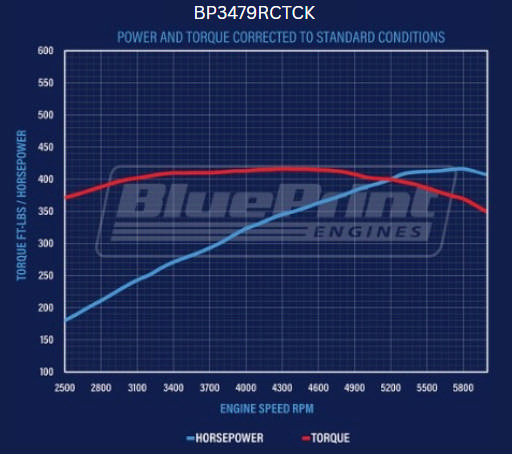

• Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Cast Crankshaft

• BluePrint Engines Forged Pistons
• BluePrint Engines Hydraulic Roller Cam

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• Cast Crankshaft
• 3.400" Stroke
• Forged 5.400" Connecting Rods
• Forged Pistons
• 28oz Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Hydraulic Roller Cam
• .543 Intake / .554 Exhaust Lift
• 218 Intake / 226 Exhaust Duration
• @.050-112 Degree Lobe Separation

Ignition Timing:

• 10-16 Degrees Initial, 32-34 Total

Also Includes:

• Holley Brawler 670cfm Vacuum Secondary Carburetor w/ Electric Choke - BPP67256670
• Dual Plane Satin Aluminum Intake Manifold - BPP302INT

• Pro-Series Ready Run Distributor - BPP3023BK
• 28 oz Harmonic Balancer - BPP28
• Dual / Rear Sump Oil Pan - BPP302RSPAN

• BluePrint Logo'd Valve Covers - BPP9237
• BluePrint Timing Cover - BPP302351TC
• Standard Rotation Water Pump - BPP16230
• Thermostat and Thermostat Housing
• BluePrint Dipstick - BPP6750
• Fuel Pump - BPP6588
• Spark Plugs - BPP7938
• Spark Plug Wires
• 14" Air Cleaner

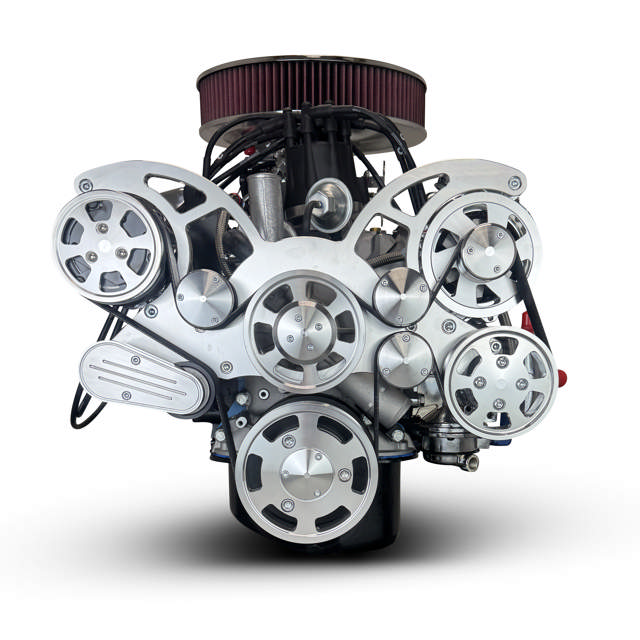

• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Notes:

• Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
