Overview:

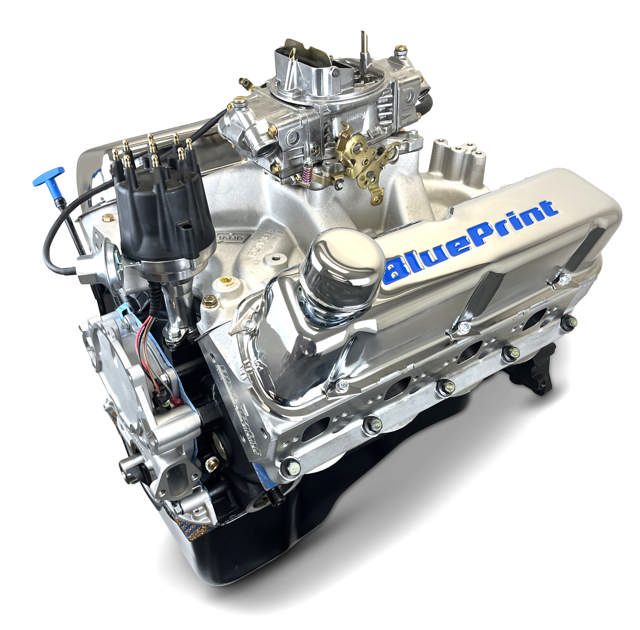

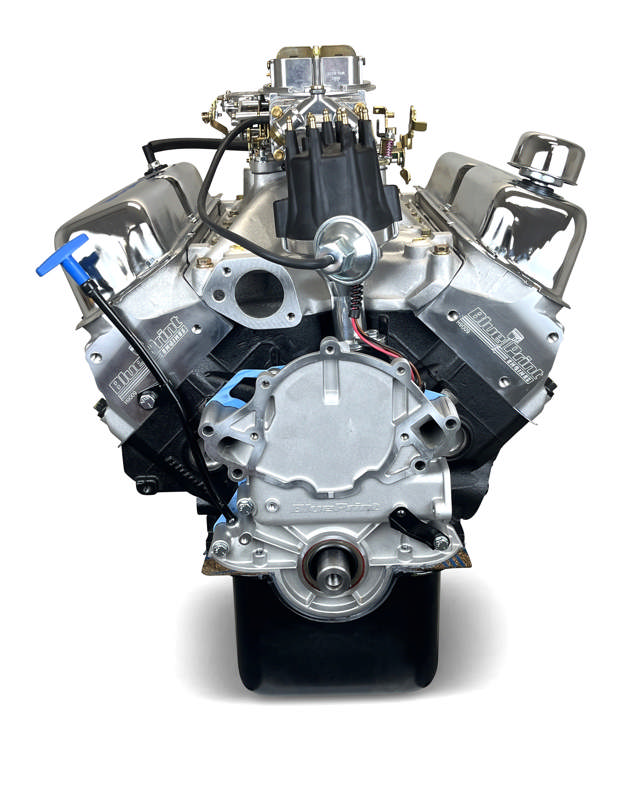

Turn your build into a torque monster with the BluePrint Engines 408 c.i. Ford-style stroker that’s all muscle and no compromise. Cranking out 450 horsepower and 470 ft. lbs. of torque, this powerhouse features forged pistons, a steel crank, and aluminum heads for bulletproof strength and high-flow performance. The hydraulic roller cam delivers crisp throttle response and that deep, throaty idle every gearhead loves. Topped with a 750 CFM carburetor, it delivers instant throttle punch and classic carb feel. Fully balanced, precision-machined, and ready to drop in, this engine is built for serious Ford fans who want big power with proven reliability.

Description:

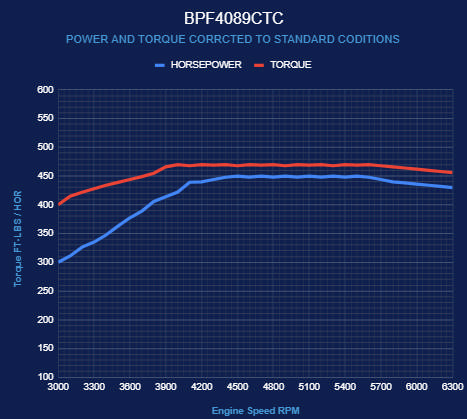

• Horsepower & Torque: 450 Horsepower / 470 ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Cast Crankshaft
• BluePrint Engines Forged Pistons


Block:

• BluePrint Engines High Strength Cast Iron Block

• Passenger Side Dipstick

• 1-Piece Rear Main Seal
• 9.500" Deck Height
• 4-Bolt Main
• 4.040" Bore

Rotating Assembly:

• Cast Crankshaft
• 4.000" Stroke
• Forged I-Beam 6.200" Connecting Rods
• Forged Pistons
• External 28 Oz. Balance Front and Rear


Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009 w/ Spring Upgrade
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 65cc Exhaust Runners


Cam Specs:

• Hydraulic Roller Cam
• .579 Intake / .579 Exhaust Lift
• 236 Intake / 248 Exhaust Duration
• @.050-114 Degree Lobe Separation


Ignition Timing:

• 34 Degrees Total at 3500 RPM


Also Includes:

• 750cfm Carburetor
• Dual Plane Satin Aluminum Intake Manifold
• Pro-Series Ready Run Distributor - BPP3513BK

• BluePrint Timing Cover - BPP302351TC
• BluePrint Valve Covers - BPP9237
• BluePrint Dipstick - BPP6920
• Front Sump Oil Pan

Notes:

• Not for use in pollution-controlled vehicles.
