Horsepower & Torque: 600 Horsepower / 568 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10.1:1
Camshaft: Hydraulic Roller Cam - .647 Intake / .647 Exhaust Lift and 248 Intake / 254 Exhaust Duration @.050-112° LSA
Pistons: Hypereutectic
Crankshaft: Forged Steel Crank - 4.250" Stroke and Forged 6.135" Rods
Fuel Recommendation: 91+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:
Description:
- Horsepower & Torque: 600 Horsepower / 568 ft. lbs. Torque
- Compression Ratio: 10.1:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block, 454 BBC
- Manufactured and Machined in the USA!
- Mech Fuel Pump Provision: Yes
- 1-Piece Rear Main Seal
- Standard Deck
- 4-Bolt Main
- 4.310" Bore
Rotating Assembly:
- BluePrint Forged Steel Crankshaft
- 4.250" Stroke
- OEM Type 6.135" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Externally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8013
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 316cc Intake / 124cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting.
- Must Verify Header / Exhaust Clearance
Cam Specs:
- Hydraulic Roller
- .647 Intake / .647 Exhaust Lift
- 248 Intake / 254 Exhaust Duration
- @ .050-112 Degree Lobe Separation
Ignition Timing:
- 10-16° Initial and Total Timing 32-34° at 3500 RPM
Also Includes:
- Holley 850cfm Double Pumper Carburetor w/ Manual Choke
- Intake Manifold Single Plane, Satin Aluminum - BPP454540INT
- HEI Ready Run Distributor - BPP350RBK
- BluePrint Valve Covers
- BluePrint Dipstick
- Timing Cover
- Oil Pump
- Oil Pan
Notes:
- Not for EGR.
- Features External 42.5 oz. imbalance. Recommend GM flywheel 14096987, or TCI flex plate 399973.
Blocks
- BluePrint Engines High Strength Cast Iron Block, 454 BBC
- Manufactured and Machined in the USA!
- Mech Fuel Pump Provision: Yes
- 1-Piece Rear Main Seal
- Standard Deck
- 4-Bolt Main
- 4.310" Bore
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - PS8013
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 316cc Intake / 124cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting.
- Must Verify Header / Exhaust Clearance
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.035 in.
Firing Order
1,8,4,3,6,5,7,2
Rotating Assembly
- BluePrint Forged Steel Crankshaft
- 4.250" Stroke
- OEM Type 6.135" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Externally Balanced Front and Rear
Cam Specs
- Hydraulic Roller
- .647 Intake / .647 Exhaust Lift
- 248 Intake / 254 Exhaust Duration
- @ .050-112 Degree Lobe Separation
Stall Converter
2200+
Also Includes
- Holley 850cfm Double Pumper Carburetor w/ Manual Choke
- Intake Manifold Single Plane, Satin Aluminum - BPP454540INT
- HEI Ready Run Distributor - BPP350RBK
- BluePrint Valve Covers
- BluePrint Dipstick
- Timing Cover
- Oil Pump
- Oil Pan
Notes
- Not for EGR.
- Features External 42.5 oz. imbalance. Recommend GM flywheel 14096987, or TCI flex plate 399973.

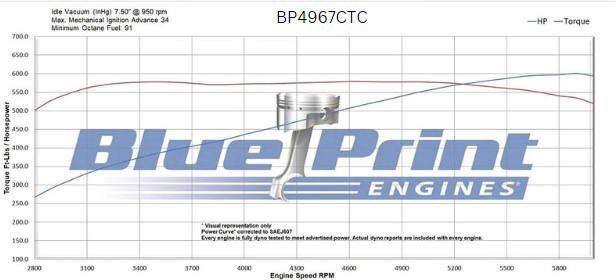

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Intake Manifold Single Plane, Satin Aluminum - BPP454540INT |
|---|---|
| Spark Plug (Not Included) | BPP7938 - NGK 7938 BKR5E |
| Harmonic Balancer (Not Included) | BPP400L |
| Flexplate/Flywheel (Not Included) | Weighted Gen V 42.5 oz |
| Fuel Recommendation | 91+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 8 Quarts |
