Horsepower & Torque: 600 Horsepower / 568 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10.1:1
Camshaft: Hydraulic Roller Cam - .647 Intake / .647 Exhaust Lift and 248 Intake / 254 Exhaust Duration @.050-112° LSA
Pistons: Hypereutectic
Crankshaft: Forged Steel Crank - 4.250" Stroke and Forged 6.135" Rods
Fuel Recommendation: 91+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:
Description:
- Horsepower & Torque: 600 Horsepower / 568 ft. lbs. Torque
- Compression Ratio: 10.1:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block, 454 BBC
- Manufactured and Machined in the USA!
- Mech Fuel Pump Provision: Yes
- 1-Piece Rear Main Seal
- Standard Deck
- 4-Bolt Main
- 4.310" Bore
Rotating Assembly:
- BluePrint Forged Steel Crankshaft
- 4.250" Stroke
- 6.135" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Externally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8013
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 316cc Intake / 124cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting.
- Must Verify Header / Exhaust Clearance
Cam Specs:
- Hydraulic Roller
- .647 Intake / .647 Exhaust Lift
- 248 Intake / 254 Exhaust Duration
- @ .050-112 Degree Lobe Separation
Ignition Timing:
- 10-16° Initial and Total Timing 32-34° at 3500 RPM
Also Includes:
- Intake Manifold Single Plane, Satin Aluminum - BPP454540INT
- Holley Sniper 2 EFI System - BPP550-510-3XX
- HEI Ready Run Distributor - BPP350RBK
- BluePrint Valve Covers
- BluePrint Dipstick
- Timing Cover
- Oil Pump
- Oil Pan
- Polished Pulley Kit - BPP454FDPSAC4
- Reverse Rotation Short Water Pump
- 1- Wire 140amp Alternator
- Peanut Style Air Conditioning Compressor
- Type II Power Steering Pump with Remote Reservoir
Notes:
- Not for EGR
- Features External 42.5 oz. imbalance. Recommend BluePrint Engines flywheel 14096987 or BluePrint Engines flex plate 399973.
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
Blocks
- BluePrint Engines High Strength Cast Iron Block, 454 BBC
- Manufactured and Machined in the USA!
- Mech Fuel Pump Provision: Yes
- 1-Piece Rear Main Seal
- Standard Deck
- 4-Bolt Main
- 4.310" Bore
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - PS8013
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 316cc Intake / 124cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting.
- Must Verify Header / Exhaust Clearance
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.035 in.
Firing Order
1,8,4,3,6,5,7,2
Rotating Assembly
- BluePrint Forged Steel Crankshaft
- 4.250" Stroke
- 6.135" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Externally Balanced Front and Rear
Cam Specs
- Hydraulic Roller
- .647 Intake / .647 Exhaust Lift
- 248 Intake / 254 Exhaust Duration
- @ .050-112 Degree Lobe Separation
Stall Converter
2200+
Also Includes
- Intake Manifold Single Plane, Satin Aluminum - BPP454540INT
- Holley Sniper 2 EFI System - BPP550-510-3XX
- HEI Ready Run Distributor - BPP350RBK
- BluePrint Valve Covers
- BluePrint Dipstick
- Timing Cover
- Oil Pump
- Oil Pan
- Polished Pulley Kit - BPP454FDPSAC4
- Reverse Rotation Short Water Pump
- 1- Wire 140amp Alternator
- Peanut Style Air Conditioning Compressor
- Type II Power Steering Pump with Remote Reservoir
Notes
- Not for EGR
- Features External 42.5 oz. imbalance. Recommend BluePrint Engines flywheel 14096987 or BluePrint Engines flex plate 399973.
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

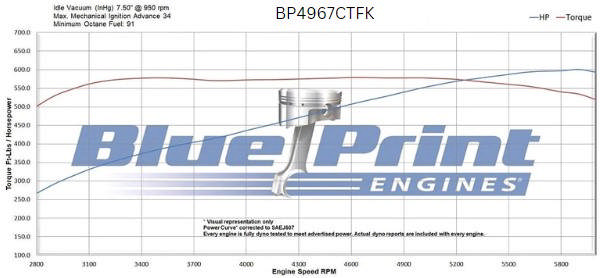

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Intake Manifold Single Plane, Satin Aluminum - BPP454540INT |
|---|---|
| Spark Plug | BPP7938 - NGK 7938 BKR5E |
| Harmonic Balancer | BPP400L |
| Flexplate/Flywheel (Not Included) | Weighted Gen V 42.5 oz |
| Fuel Recommendation | 91+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 8 Quarts |
Header Partners:
