Horsepower & Torque: 627 Horsepower / 569 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10.1:1
Camshaft: Hydraulic Roller Cam - .647 Intake / .647 Exhaust Lift and 248 Intake / 254 Exhaust Duration @.050-112° LSA
Pistons: Forged
Crankshaft: Steel Crank - 4.000" Stroke and Forged 6.385" Rods
Fuel Recommendation: 91+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:
Description:
- Horsepower & Torque: 627 Horsepower / 569 ft. lbs. Torque
- Compression Ratio: 10.1:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Mech Fuel Pump Provision: Yes
- 1-Piece Rear Main Seal
- Standard Deck
- 4-Bolt Main
- 4.466" Bore
Rotating Assembly:
- BluePrint Forged Crankshaft
- 4.000" Stroke
- Forged H-beam 6.385" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads -PS8013
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 316cc Intake / 124cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
- Must Verify Header / Exhaust Clearance
Cam Specs:
- Hydraulic Roller
- .647 Intake / .647 Exhaust Lift
- 248 Intake / 254 Exhaust Duration
- @ .050-112 Degree Lobe Separation
Also Includes:
- Holley 850cfm Double Pumper Carburetor w/ Manual Choke - BPP04781S
- Single Plane Satin Aluminum Intake Manifold - BPP454540INT
- Pro Series Ready Run Distributor - BPP3503BK
- Fuel Pump Block Off Plate - BPP42473
- Harmonic Balancer - BPP454I
- BluePrint Valve Covers
- Spark Plugs and Wires
- BluePrint Dipstick
- Timing Cover
- Oil Pump
- Oil Pan
- Polished Pulley Kit - BPP454FDPSAC4
- Reverse Rotation Short Water Pump
- 1- Wire 140amp Alternator
- Peanut Style Air Conditioning Compressor
- Type II Power Steering Pump with Remote Reservoir
Notes:
- Not for use in pollution-controlled vehicles
- Initial advance should be set at 13-16 Degree BTDC. The total advance should be NO MORE than 34 Degree BTDC and Should be reached by about 4000 RM.
- BluePrint Engines recommends using a distributor with melonized iron or steel gear ONLY on this engine.
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
Blocks
- BluePrint High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Mech Fuel Pump Provision: Yes
- 1-Piece Rear Main Seal
- Standard Deck
- 4-Bolt Main
- 4.466" Bore
Cylinder Heads
- BluePrint Aluminum Cylinder Heads -PS8013
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 316cc Intake / 124cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
- Must Verify Header / Exhaust Clearance
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.035 in.
Firing Order
1,8,4,3,6,5,7,2
Rotating Assembly
- BluePrint Forged Crankshaft
- 4.000" Stroke
- Forged H-beam 6.385" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cam Specs
- Hydraulic Roller
- .647 Intake / .647 Exhaust Lift
- 248 Intake / 254 Exhaust Duration
- @ .050-112 Degree Lobe Separation
Stall Converter
2200+ RPM
Also Includes
- Holley 850cfm Double Pumper Carburetor w/ Manual Choke - BPP04781S
- Single Plane Satin Aluminum Intake Manifold - BPP454540INT
- Pro Series Ready Run Distributor - BPP3503BK
- Fuel Pump Block Off Plate - BPP42473
- Harmonic Balancer - BPP454I
- BluePrint Valve Covers
- Spark Plugs and Wires
- BluePrint Dipstick
- Timing Cover
- Oil Pump
- Oil Pan
- Polished Pulley Kit - BPP454FDPSAC4
- Reverse Rotation Short Water Pump
- 1- Wire 140amp Alternator
- Peanut Style Air Conditioning Compressor
- Type II Power Steering Pump with Remote Reservoir
Notes
- Not for use in pollution-controlled vehicles
- Initial advance should be set at 13-16 Degree BTDC. The total advance should be NO MORE than 34 Degree BTDC and Should be reached by about 4000 RM.
- BluePrint Engines recommends using a distributor with melonized iron or steel gear ONLY on this engine.
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

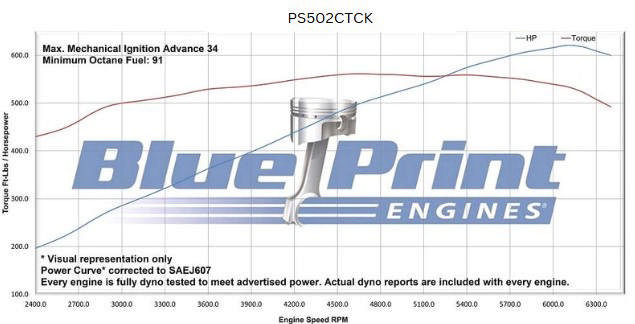

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Single Plane Satin Aluminum Intake Manifold - BPP454540INT |
|---|---|
| Spark Plug | BPP7938 - NGK 7938 BKR5E |
| Harmonic Balancer | BPP454I |
| Flexplate/Flywheel (Not Included) | BPP168T2P - BPP460130 |
| Fuel Recommendation | 91+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 8 Quarts |
