Horsepower & Torque: 741 Horsepower / 703 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10.5:1
Camshaft: Hydraulic Roller Cam - .647 Intake / .647 Exhaust Lift and 258 Intake / 266 Exhaust Duration @.050-112° LSA
Pistons: Forged
Crankshaft: Steel Crank - 4.500" Stroke and Forged 6.480" Rods
Fuel Recommendation: 91+ Octane Approved
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:
Description:
- Horsepower & Torque: 741 Horsepower / 703 ft. lbs. Torque
- Compression Ratio: 10.5:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Mech Fuel Pump Provision: Yes
- 1-Piece Rear Main Seal
- Standard Deck
- 4-Bolt Main
- 4.600" Bore
Rotating Assembly:
- BluePrint Forged Crankshaft
- 4.500" Stroke
- Forged H-beam 6.480" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8012
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 358cc Intake / 125cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
- Must Verify Header / Exhaust Clearance
Cam Specs:
- .647 Intake / .647 Exhaust Lift
- 258 Intake / 266 Exhaust Duration
- @ .050–112 Degree Lobe Separation
Ignition Timing:
- 34° Total Timing
Also Includes:
- Pro Series Ready Run Distributor - BPP3503BK
- 1250cfm Holley Carburetor
- Short Deck Intake Manifold
- Harmonic Balancer - BPP454I
- Fuel Pump Block Off Plate
- Spark Plugs and Wires
- BluePrint Dipstick
- Timing Cover
- Valve Covers
- Oil Pump
- Oil Pan
- Black Pulley Kit - BPP454FDPSAC4BK
- Reverse Rotation Short Water Pump
- 1- Wire 140amp Alternator
- Peanut Style Air Conditioning Compressor
- Type II Power Steering Pump with Remote Reservoir
Notes:
Blocks
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Mech Fuel Pump Provision: Yes
- 1-Piece Rear Main Seal
- Standard Deck
- 4-Bolt Main
- 4.600" Bore
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - PS8012
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 358cc Intake / 125cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
- Must Verify Header / Exhaust Clearance
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.035 in.
Firing Order
1,8,4,3,6,5,7,2
Rotating Assembly
- BluePrint Forged Crankshaft
- 4.500" Stroke
- Forged H-beam 6.480" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cam Specs
- .647 Intake / .647 Exhaust Lift
- 258 Intake / 266 Exhaust Duration
- @ .050–112 Degree Lobe Separation
Stall Converter
2500-2800 RPM
Also Includes
- Pro Series Ready Run Distributor - BPP3503BK
- 1250cfm Holley Carburetor
- Short Deck Intake Manifold
- Harmonic Balancer - BPP454I
- Fuel Pump Block Off Plate
- Spark Plugs and Wires
- BluePrint Dipstick
- Timing Cover
- Valve Covers
- Oil Pump
- Oil Pan
- Black Pulley Kit - BPP454FDPSAC4BK
- Reverse Rotation Short Water Pump
- 1- Wire 140amp Alternator
- Peanut Style Air Conditioning Compressor
- Type II Power Steering Pump with Remote Reservoir
Notes

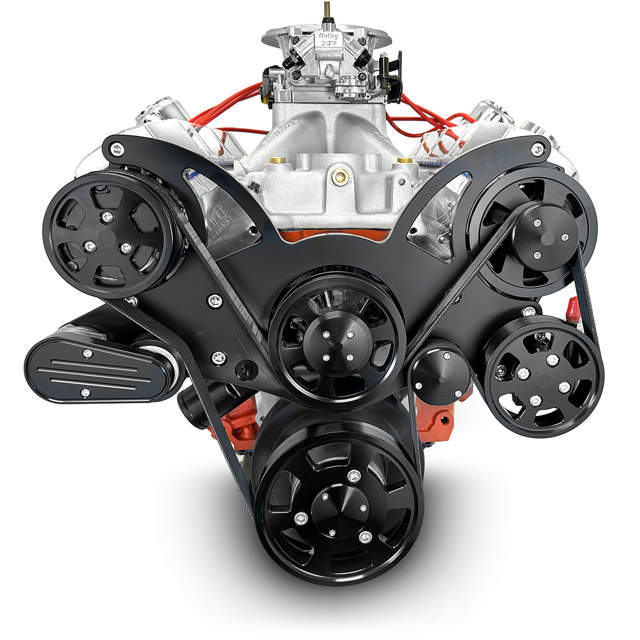

The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

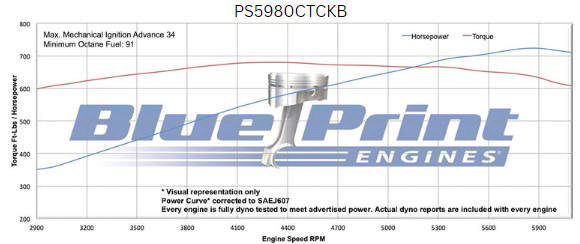

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Single Plane, Satin Aluminum Short Deck Intake Manifold |
|---|---|
| Spark Plug | BPP7938 - NGK 7938 BKR5E |
| Harmonic Balancer | BPP454I |
| Flexplate/Flywheel (Not Included) | BPP168T2P - BPP460130 |
| Fuel Recommendation | 91+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 8 Quarts |
