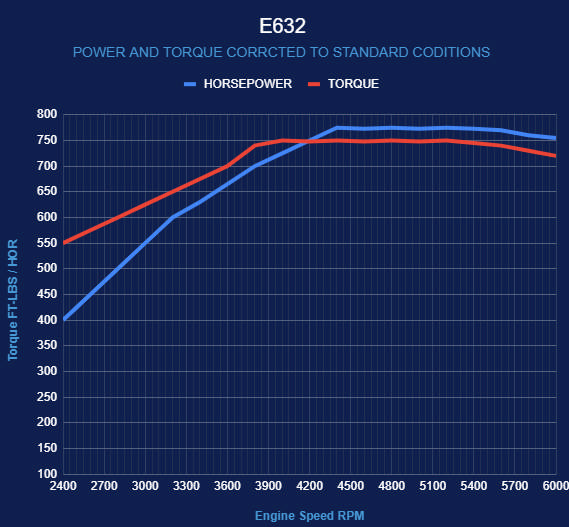

Horsepower & Torque: 775 Horsepower / 750 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 9.6:1
Camshaft: Hydraulic Roller Cam - .698 Intake / .698 Exhaust Lift and 272 Intake 282 Exhaust Duration @ .050 - 110° LSA
Pistons: Forged
Crankshaft: Steel Crank - 4.750" Stroke and Forged 6.635" Rods
Fuel Recommendation: 91+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Description:
- Horsepower & Torque: 775 Horsepower / 750 ft. lbs. Naturally Aspirated
- Compression Ratio: 9.6:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.600" Bore
- 1-Piece Rear Main Seal
- Tall Deck (Cylinder Deck is Approx .400 Taller / Wider than OEM Block)
Rotating Assembly:
- BluePrint Forged Crankshaft
- 4.750" Stroke
- Forged H-beam 6.635" Connecting Rods
- ARP 2000 Series Bolts
- Mahle Motorsports Forged Pistons
- Precision Gap, Power Adder Piston Rings
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8012
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 358cc Intake / 125cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting.
- MLS Head Gaskets
Cam Specs:
- Hydraulic Roller
- .698 Intake / .698 Exhaust Lift
- 272 Intake / 282 Exhaust Duration
- @.050-110 Degree Lobe Separation
Also Includes:
- SFI Rated Dual Keyway 8 in. Balancer
- BluePrint Engine Dipstick
- Timing Cover
- Valve Covers
- Oil Pan
Notes:
- Built and designed for Power Adder applications. Dual keyway crankshaft included.
- Not for use in pollution-controlled vehicles.
- This engine features .300 raised exhaust ports and .400 deck height increase over OEM.
- Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.
Blocks
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.600" Bore
- 1-Piece Rear Main Seal
- Tall Deck (Cylinder Deck is Approx .400 Taller / Wider than OEM Block)
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - PS8012
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 358cc Intake / 125cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting.
- MLS Head Gaskets
Ignition Timing
Controlled by OEM ECU
Spark Plug
.035 in.
Firing Order
1,8,7,2,6,5,4,3
Rotating Assembly
- BluePrint Forged Crankshaft
- 4.750" Stroke
- Forged H-beam 6.635" Connecting Rods
- ARP 2000 Series Bolts
- Mahle Motorsports Forged Pistons
- Precision Gap, Power Adder Piston Rings
- Internally Balanced Front and Rear
Cam Specs
- Hydraulic Roller
- .698 Intake / .698 Exhaust Lift
- 272 Intake / 282 Exhaust Duration
- @.050-110 Degree Lobe Separation
Stall Converter
2200+ RPM
Also Includes
- SFI Rated Dual Keyway 8 in. Balancer
- BluePrint Engine Dipstick
- Timing Cover
- Valve Covers
- Oil Pan
Notes
- Built and designed for Power Adder applications. Dual keyway crankshaft included.
- Not for use in pollution-controlled vehicles.
- This engine features .300 raised exhaust ports and .400 deck height increase over OEM.
- Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.
Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold (Not Included) | N/A |
|---|---|
| Spark Plug (Not Included) | AC Delco 41-985 |
| Harmonic Balancer (Not Included) | BPP454I |
| Flexplate/Flywheel (Not Included) | BPPF28164 - BPPF157T28 |
| Fuel Recommendation | 91+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 8 Quarts |
