Horsepower & Torque: 815 Horsepower / 800 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 11:1
Camshaft: Hydraulic Roller Cam - .698 Intake / .698 Exhaust Lift and 272 Intake / 282 Exhaust Duration @ .050 - 110° LSA
Pistons: Forged
Crankshaft: Steel Crank - 4.750" Stroke and Forged 6.635" Rods
Fuel Recommendation: 91+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:
Description:
- Horsepower & Torque: 815 Horsepower / 775 ft. lbs. Torque
- Compression Ratio: 11.0:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Tall Deck (Cylinder Deck is Approx .400 taller / Wider than OEM Block)
- Mech Fuel Pump Provision: Yes
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.600" Bore
Rotating Assembly:
- BluePrint Forged Crankshaft
- 4.750" Stroke
- Forged H-beam 6.635" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8012
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 358cc Intake / 125cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
Cam Specs:
- Hydraulic Roller
- .698 Intake / .698 Exhaust Lift
- 272 Intake / 282 Exhaust Duration
- @.050-110 Degree Lobe Separation
Also Includes:
- Pro Series Ready Run Distributor - BPP3503BK
- Holley GEN III Ultra Dominator Carburetor
- Harmonic Balancer - BPP454I
- Single Plan Intake Manifold
- Fuel Pump Block Off Plate
- Spark Plugs - BPP7938
- Spark Plug Wires
- BluePrint Dipstick
- Timing Cover
- Valve Covers
- Oil Pump
- Oil Pan

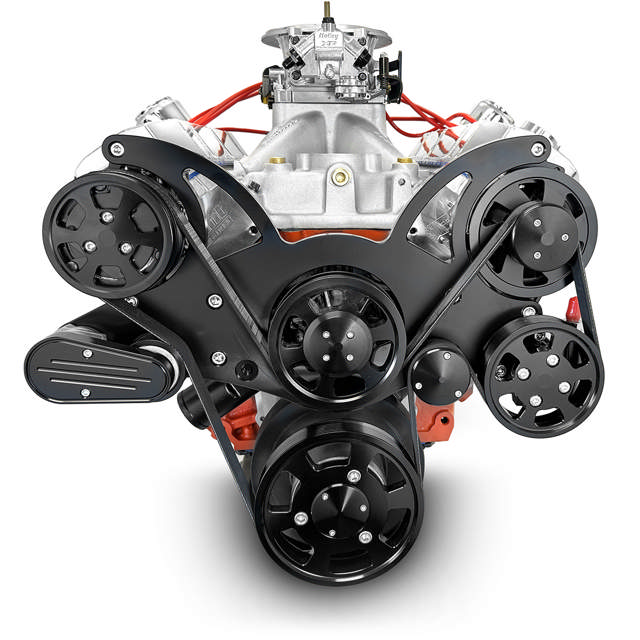

- Black Pulley Kit - BPP454FDPSAC4BK
- Reverse Rotation Short Water Pump
- 1- Wire 140amp Alternator
- Peanut Style Air Conditioning Compressor
- Type II Power Steering Pump with Remote Reservoir
Notes:
- Not for use in pollution-controlled vehicles.
- This engine features .300 raised exhaust ports and .400 deck height increase over OEM.
- Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
Blocks
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Tall Deck (Cylinder Deck is Approx .400 taller / Wider than OEM Block)
- Mech Fuel Pump Provision: Yes
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.600" Bore
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - PS8012
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 358cc Intake / 125cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.035 in.
Firing Order
1,8,4,3,6,5,7,2
Rotating Assembly
- BluePrint Forged Crankshaft
- 4.750" Stroke
- Forged H-beam 6.635" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cam Specs
- Hydraulic Roller
- .698 Intake / .698 Exhaust Lift
- 272 Intake / 282 Exhaust Duration
- @.050-110 Degree Lobe Separation
Stall Converter
3800-4200 RPM
Also Includes
- Pro Series Ready Run Distributor - BPP3503BK
- Holley GEN III Ultra Dominator Carburetor
- Harmonic Balancer - BPP454I
- Single Plan Intake Manifold
- Fuel Pump Block Off Plate
- Spark Plugs - BPP7938
- Spark Plug Wires
- BluePrint Dipstick
- Timing Cover
- Valve Covers
- Oil Pump
- Oil Pan
- Black Pulley Kit - BPP454FDPSAC4BK
- Reverse Rotation Short Water Pump
- 1- Wire 140amp Alternator
- Peanut Style Air Conditioning Compressor
- Type II Power Steering Pump with Remote Reservoir
Notes
- Not for use in pollution-controlled vehicles.
- This engine features .300 raised exhaust ports and .400 deck height increase over OEM.
- Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

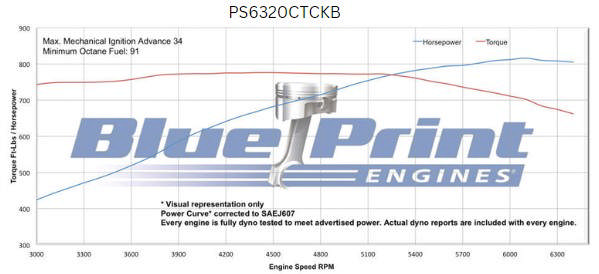

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Single Plane, Satin Aluminum Intake Manifold |
|---|---|
| Spark Plug | BPP7938 - NGK 7938 BKR5E |
| Harmonic Balancer | BPP454I |
| Flexplate/Flywheel (Not Included) | BPP168T2P - BPP460130 |
| Fuel Recommendation | 91+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 8 Quarts |
Header Partners:
- Click Here for our Header Partners and recommendations.
Better Than the Rest.
The satisfaction of our customers is our highest priority at BluePrint Engines. Every engine we build is assembled with premium components, balanced to within two grams, and dyno-tested to verify real horsepower and torque before it leaves our facility.
All BluePrint products include warranty protection designed specifically for how they're used. Our complete crate engines carry our industry-leading 30-month / 50,000-mile warranty, offering the confidence and peace of mind serious builders expect. Other BluePrint products—including bare blocks, marine engines, transmissions, race applications, and cylinder heads—feature warranty coverage tailored to their intended use and operating conditions.
For full terms and specific coverage by product category, download our warranty guide below. It contains complete details, limitations, and instructions for warranty registration and claims.
Already Own this engine?
Protect your investment by registering your warranty today. Register below to ensure coverage and stay up to date on important service information.
Register NowEVERY BLUEPRINT ENGINE ACES THE DYNO TEST
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer in our in-house dyno testing rooms to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That’s precisely why our engines sound and run better than our competitors.
All specs, zero speculation: A comprehensive, dyno-generated printout showing your critical engine specs will accompany your delivered engine — every time. No more guessing or wondering what your installed engine’s real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash ‘em your exact engine’s dyno results.
