Overview:

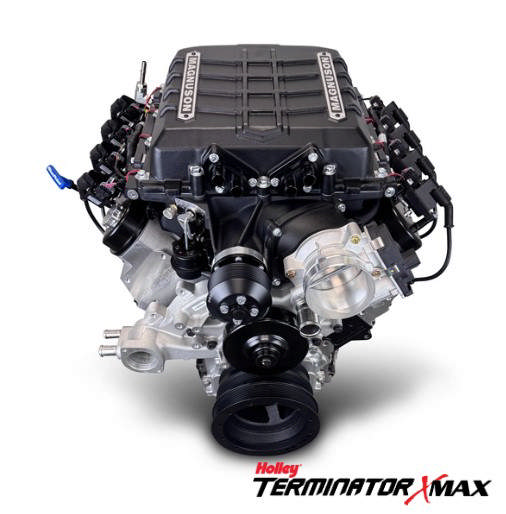

The BluePrint Engines GM LS Compatible 376ci powerplant, paired with the formidable Magnuson TVS 2650 Supercharger, is a testament to modern performance engineering. This robust setup is anchored by the Holley Terminator X Max Gen IV ECU and harness system, delivering precise fuel and spark control for maximum efficiency and power. The integrated EFI system, complete with high-flow fuel injectors and rail, ensures consistent delivery under demanding conditions. Supporting components like the oil pan, coil packs, spark plugs and wires, water pump, and harmonic balancer are all meticulously selected to withstand high-output stress and maintain reliability. Mated to a heavy-duty 4L80E four-speed automatic transmission, this combination offers seamless power delivery and durability, making it an ideal choice for high-performance street builds or track-ready machines.

Description:

• Horsepower & Torque: 700 Horsepower / 640 ft. lbs. Torque
• Compression Ratio: 9.5:1
• BluePrint Engines LS3 Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam

• BluePrint Engines Forged Pistons
• BluePrint Engines Forged Crankshaft


Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Extended Cylinder Skirt
• Priority Main Oiling
• 6-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design
• Utilizes OEM LS3 Front and Rear Covers


Rotating Assembly:

• Forged Crankshaft
• 3.622" Stroke
• 6.125" Forged I-Beam Connecting Rods w/ 150,000 PSI Bolts
• Forged Pistons
• Internally Balanced

Cylinder Heads:

• BluePrint LS3 Aluminum Cylinder Heads - PS8015
• 70cc Chamber
• 2.165" Intake / 1.590" Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

Cam Specs:

• Hydraulic Roller Cam
• .612 Intake / .585 Exhaust Lift
• 225 Intake / 238 Exhaust Duration
• @.050-113 Degree Lobe Separation

Holley Terminator X Max Specific Features and Benefits:

• Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
• On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
• Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
• Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
• 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
• Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
• Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
• Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine.

Also Includes:

• Magnuson TVS 2650 Supercharger
• Oil Pan

• Fuel Injectors and Rail
• Coil Packs
• Spark Plugs and Wires
• Water Pump
• Harmonic Balancer


Assembled with Complete Performance Built 4L80E Four Speed Automatic Transmission Package:

• 4l80E Complete Package
• Electronic Transmission Controller Included
• 3000+ Stall Torque Converter
• Flex Plate
• Starter

4L80E Gear Ratios:

• 1: 2.482
• 2: 1.482
• 3: 1.00
• 4: 0.750
• R: 2.077

Notes:

• This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. Please DO NOT follow the Holley EFI manual for the calibration of the ECU.
• BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the above ECU / tuning.
