SKU: BLS4279SCT4L8
BluePrint Engines GM LS Compatible 427 c.i. Engine and 4L80E Automatic Transmission - 830 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI System X EFI System
$32,349.00
427 c.i. 830 Horsepower Builder Series

Horsepower & Torque: 830 Horsepower / 800 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 9.5:1

Camshaft: Hydraulic Roller Cam - .624 Intake / .624 Exhaust Lift and 239 Intake / 255 Exhaust Duration @ .050 – 114° LSA

Pistons: Forged

Crankshaft: Forged Crank – 4.125" Stroke and Forged 6.125" Rods

Supercharger: Magnuson TVS2650

Fuel Recommendation: 91+ Octane

Holley Terminator X Max - Gen IV Complete ECU/Harness EFI System

Secure Payments
Financing available at checkout with Affirm

Overview:

BluePrint Engines unleashes serious LS power with this 427 c.i. Builder Series package, delivering a massive 830 horsepower and paired perfectly with a tough, street-proven 4L80E automatic transmission. This combo is built for the enthusiast who wants modern reliability with race-ready punch, all controlled by the Holley Terminator X EFI system for crisp tuning, fast starts, and razor-sharp throttle response. Precision machining, premium internals, and BluePrint’s Pro-series build quality ensure the strength to handle every bit of boost, rpm, and abuse you throw at it. For builders chasing a turnkey LS powerhouse that’s ready to hit the streets, the strip, or anywhere in between, this 427/4L80E package is pure, modern muscle, delivered.

Description:

  • Horsepower & Torque: 830 Horsepower / 800 ft. lbs. Torque
  • Compression Ratio: 9.5:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Forged Crank
  • BluePrint Engines Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Increased Deck Thickness and Strength Webbing
  • Extended Cylinder Skirt
  • Priority Main Oiling
  • 6-Bolt Main
  • 1-Piece Rear Main Seal
  • Improved Water Jacket Design
  • Utilizes OEM LS3 Front and Rear Covers

Rotating Assembly:

  • New Forged Crankshaft
  • 4.125" Stroke
  • Forged 6.125" Connecting Rods
  • Forged Pistons
  • Front and Rear Internally Balanced

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - PS8015
  • 70cc Chamber
  • 2.165" Intake / 1.590" Exhaust Valves
  • 259cc Intake / 102cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .624 Intake / .624 Exhaust Lift
  • 239 Intake / 255 Exhaust Duration
  • @.050-114 Degree Lobe Separation

Ignition Timing:

  • ECM Supplied with Calibration

Holley Terminator X Max Specific Features and Benefits:

  • Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
  • On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
  • Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
  • Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
  • 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
  • Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
  • Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
  • Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine.

Also Includes:

  • Low Profile Rear Sump Oil Pan - BPP81074
  • All Sensors Required for Engine to Run
  • DBW Throttle Body - BPP12191019
  • Magnuson TVS2650 Supercharger
  • Spark Plugs & Wires
  • Harmonic Balancer
  • Timing Cover
  • Valve Covers
  • Coil Packs

Assembled with Complete HD 4l80e Transmission Package:

  • 4L80E Complete Package
  • Electronic Transmission Controller Included
  • 3200+ Stall Torque Converter
  • Flex Plate
  • Starter

4L80E Gear Ratios:

  • 1: 2.482
  • 2: 1.482
  • 3: 1.00
  • 4: 0.750
  • R: 2.077

Notes:

  • This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. Please DO NOT follow the Holley EFI manual for the calibration of the ECU.
  • Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
    Not for use in pollution-controlled vehicles or in dry sump applications.
  • BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
  • Engine/Trans Package Ships assembled

WARNING: Cancer and Reproductive Harm
Bragging Rights Included.

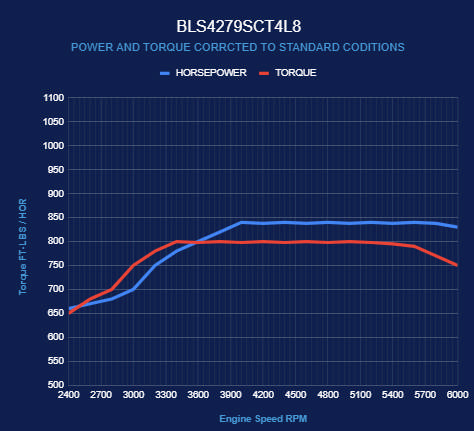

EVERY BLUEPRINT ENGINE ACES THE DYNO TEST

We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer in our in-house dyno testing rooms to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That’s precisely why our engines sound and run better than our competitors.

All specs, zero speculation: A comprehensive, dyno-generated printout showing your critical engine specs will accompany your delivered engine — every time. No more guessing or wondering what your installed engine’s real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash ‘em your exact engine’s dyno results.
