SKU: BLS37634L7

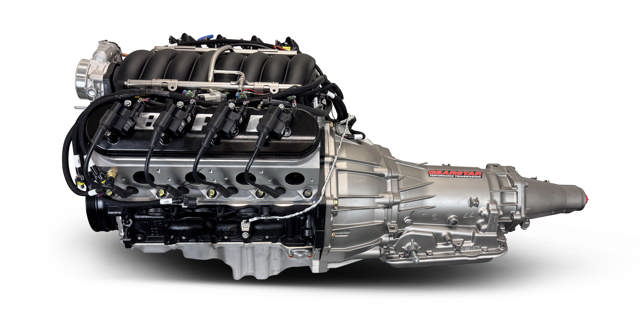

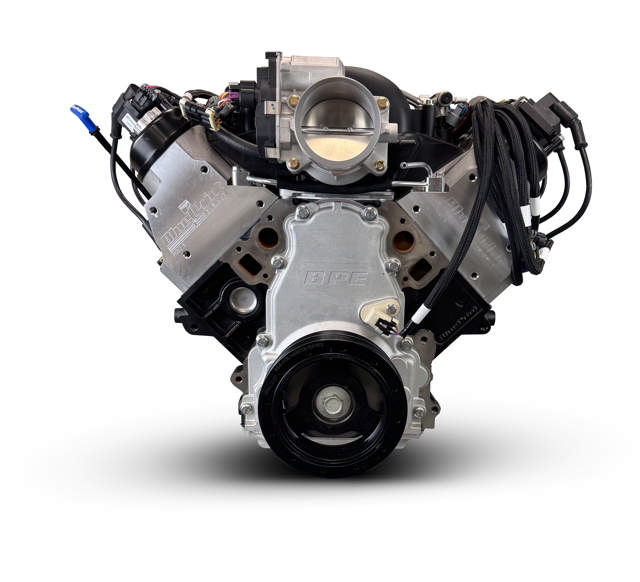

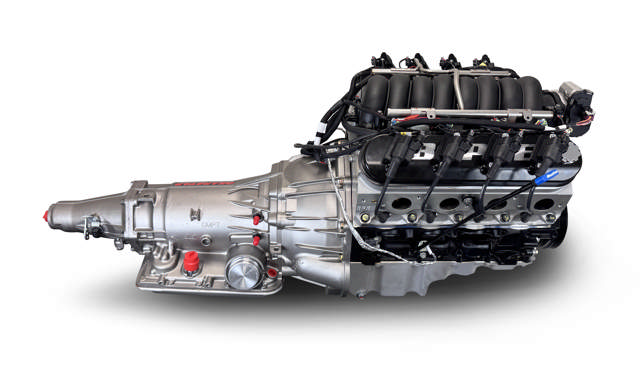

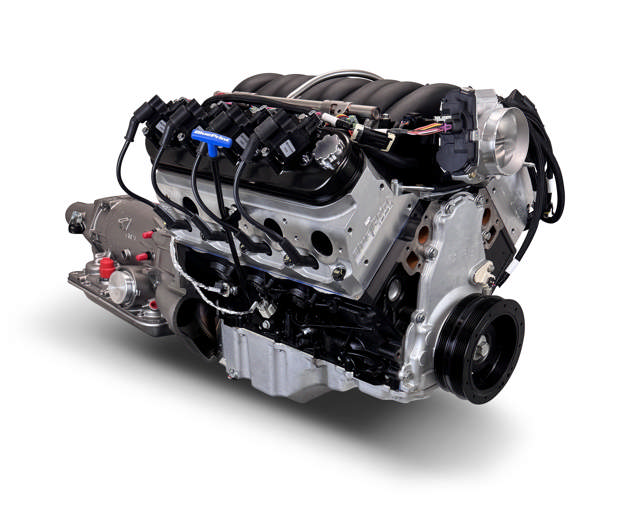

BluePrint Engines GM LS Compatible 376 c.i. Engine and 4L65/70E Automatic Transmission - 530 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI System
$20,499.00
376 c.i. 530 Horsepower Builder Series

Horsepower & Torque: 530 Horsepower / 495 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10.7:1

Camshaft: Hydraulic Roller Cam - .612 Intake / .585 Exhaust and 225 Intake / 238 Exhaust Duration @ .050 – 113 LSA

Pistons: Hypereutectic

Crankshaft: Nodular Iron Crank - 3.622" Stroke and 6.098" Rods

Fuel Injection: Holley Terminator X Max - Gen IV Complete ECU/Harness EFI System

Fuel Recommendation: 91+ Octane

Does NOT come with a Front Accessory Drive

Secure Payments
Financing available at checkout with Affirm

Overview:

BluePrint Engines delivers modern LS performance in a turnkey package with this 376 c.i. Builder Series engine paired to a 4L65/70E automatic transmission. Pumping out 530 horsepower, this combo offers crisp throttle response, rock-solid reliability, and everyday drivability—all dialed in with the Holley Terminator X EFI system for seamless control and simple tuning. Built with precision machining, premium internals, and the durability BluePrint is known for, this 376/4L65-70E setup is ready to drop in and go. For builders wanting a lightweight, high-revving LS that’s equally at home on the highway or hammering through gears, this package is a perfect blend of modern power and turnkey convenience.

Description:

  • Horsepower & Torque: 530 Horsepower / 495 ft. lbs. Torque
  • Compression Ratio: 10.7:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Hypereutectic Pistons
  • Nodular Iron Crankshaft
Block:
  • BluePrint Engines High Strength Cast Iron (LSX Style) Block
  • Increased Deck Thickness and Strength Webbing
  • Extended Cylinder Skirt
  • Priority Main Oiling
  • 6-Bolt Main
  • 1-Piece Rear Main Seal
  • Improved Water Jacket Design
  • Utilizes OEM LS3 Front and Rear Covers

Rotating Assembly:

  • Nodular Iron Crankshaft
  • 3.622" Stroke
  • 6.098" Connecting Rods w/ 150,000 PSI Bolts
  • Hypereutectic Pistons
  • Internally Balanced Front and Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - PS8015
  • 72cc Chamber
  • 2.165" Intake -1.600" Exhaust Valves
  • 259cc Intake -102cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller Cam
  • .612 Intake - .585 Exhaust Lift
  • 225 Intake - 238 Exhaust Duration
  • @.050-113 Degree Lobe Separation 110 ICL

Ignition Timing:

  • ECM Supplied with Calibration

Holley Terminator X Max Specific Features and Benefits:

  • Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
  • On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
  • Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
  • Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
  • 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
  • Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
  • Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
  • Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine

Also Includes:

  • Low Profile Swap Oil Pan - BPP81073
  • DBW Throttle Body - BPP12191019
  • Spark Plugs and Wires
  • Fuel Injectors and Rail
  • LS3 Intake Manifold
  • Harmonic Balancer
  • Coil Packs

Assembled with Complete 4l65/70e 4 Speed Automatic Transmission Package:

  • 4L65/70E Complete Package
    • (1996-2008 13-Pin Harness)
  • Electronic Transmission Controller Included
  • 2200-2400 Stall Torque Converter
  • Flex Plate
  • Starter
    • First Gear Ratio: 3.059:1
    • Second Gear Ratio: 1.625:1
    • Third Gear Ratio: 1.000:1
    • Fourth Gear Ratio: 0.696:1

Notes:

  • This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. Please DO NOT follow the Holley EFI manual for the calibration of the ECU.
  • BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the above ECU / tuning.
  • Engine/Trans Package Ships assembled.

WARNING: Cancer and Reproductive Harm
Bragging Rights Included.

EVERY BLUEPRINT ENGINE ACES THE DYNO TEST

We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer in our in-house dyno testing rooms to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That’s precisely why our engines sound and run better than our competitors.

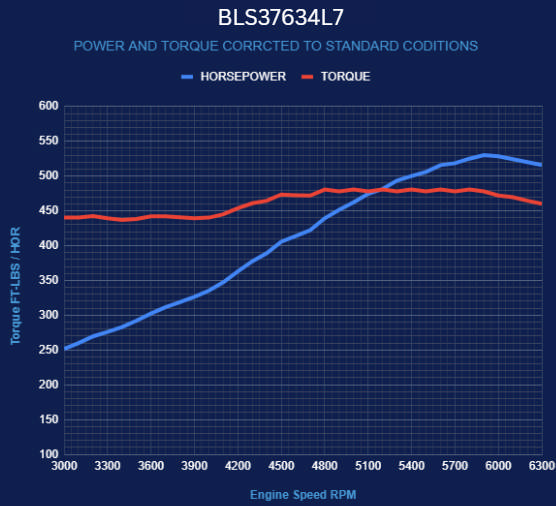

All specs, zero speculation: A comprehensive, dyno-generated printout showing your critical engine specs will accompany your delivered engine — every time. No more guessing or wondering what your installed engine’s real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash ‘em your exact engine’s dyno results.
