Horsepower & Torque: 563 Horsepower / 545 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10.5:1
Camshaft: Hydraulic Roller Cam - .638 Intake / .622 Exhaust Lift and 251 Intake / 259 Exhaust Duration @ .050 – 114 LSA
Pistons: Forged
Crankshaft: Forged Steel Crank – 4.000" Stroke and Forged 6.000" Rods
Fuel Recommendation: 91+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty

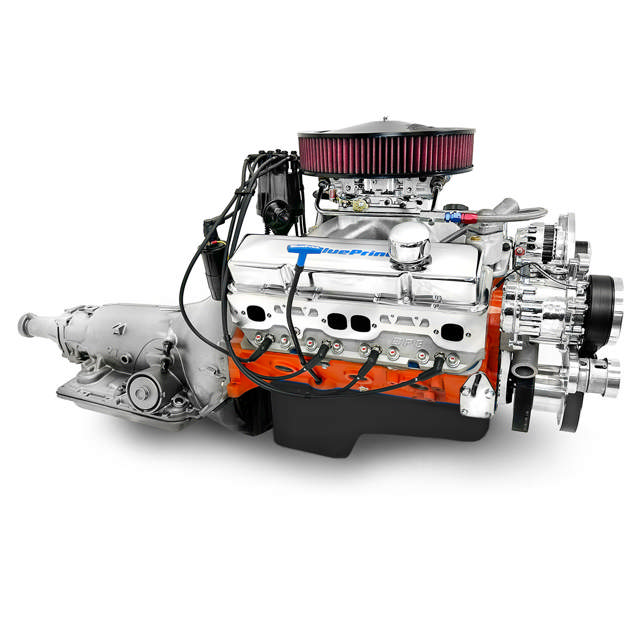

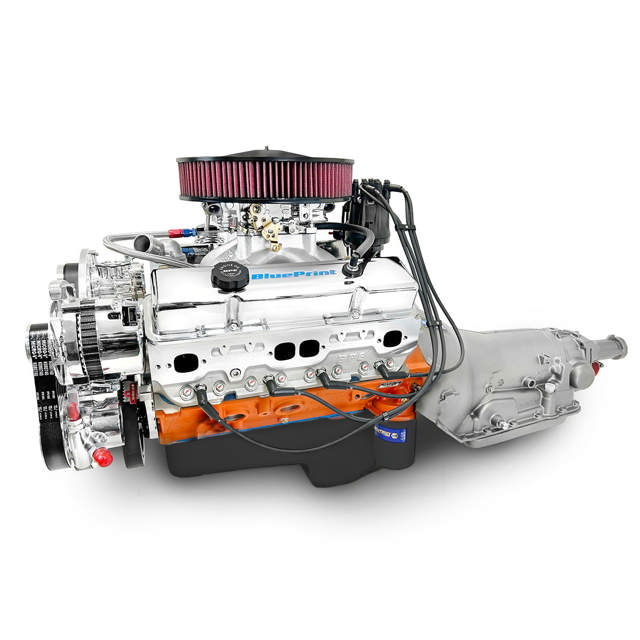

*Pictured is a Carbureted engine, will ship with and EFI Fuel System
Overview:
Description:
- Horsepower & Torque: 563 Horsepower / 545 ft. lbs. Torque
- Compression Ratio: 10.5:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.250" Bore
Rotating Assembly:
- BluePrint Forged Crankshaft
- 4.000" Stroke
- Forged 6.000" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - HP8103
- 64cc Chamber
- 2.08" Intake / 1.60" Exhaust Valves
- 220cc Intake / 67cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .638 Intake / .622 Exhaust Lift
- 251 Intake / 259 Exhaust Duration
- @ .050-114 Degree Lobe Separation
Ignition Timing:
- Initial Timing 10-16° and Total Timing 32-34°
Also Includes:
- Pro Series Ready Run Distributor - BPP3503BK
- Single Plane Intake Manifold - BPP427454INT
- Holley Sniper 2 EFI System - BPP550-510-3XX
- Thermostat and Thermostat Housing
- EFI Fuel Pump Kit - BPP5267
- Valve Covers - BPP9518
- Spark Plugs and Wires
- Timing Cover
- Oil Pan
- Polished Front Accessory Drive - BPP350FDACPS4
- Reverse Rotation Short Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Style Air Conditioning Compressor
Assembled with Complete 700R4 Automatic Transmission Package:
- 700R4 Complete Package
- 2200-2400 Stall Torque Converter
- Flex Plate
- Starter
Notes:
- Not for use in pollution-controlled vehicles.
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- Due to numerous tire/rear gear combinations, This transmission does NOT ship with a speedometer gear, or sender housing.
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
Blocks
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.250" Bore
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - HP8103
- 64cc Chamber
- 2.08" Intake / 1.60" Exhaust Valves
- 220cc Intake / 67cc Exhaust Runners
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.035 in.
Firing Order
1,8,4,3,6,5,7,2
Rotating Assembly
- BluePrint Forged Crankshaft
- 4.000" Stroke
- Forged 6.000" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cam Specs
- Hydraulic Roller
- .638 Intake / .622 Exhaust Lift
- 251 Intake / 259 Exhaust Duration
- @ .050-114 Degree Lobe Separation
Stall Converter
2200+ RPM
Also Includes
- Pro Series Ready Run Distributor - BPP3503BK
- Single Plane Intake Manifold - BPP427454INT
- Holley Sniper 2 EFI System - BPP550-510-3XX
- Thermostat and Thermostat Housing
- EFI Fuel Pump Kit - BPP5267
- Valve Covers - BPP9518
- Spark Plugs and Wires
- Timing Cover
- Oil Pan
- Polished Front Accessory Drive - BPP350FDACPS4
- Reverse Rotation Short Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Style Air Conditioning Compressor
Assembled with Complete 700R4 Automatic Transmission Package:
- 700R4 Complete Package
- 2200-2400 Stall Torque Converter
- Flex Plate
- Starter
Notes
- Not for use in pollution-controlled vehicles.
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- Due to numerous tire/rear gear combinations, this transmission does NOT ship with a speedometer gear, or sender housing.
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.

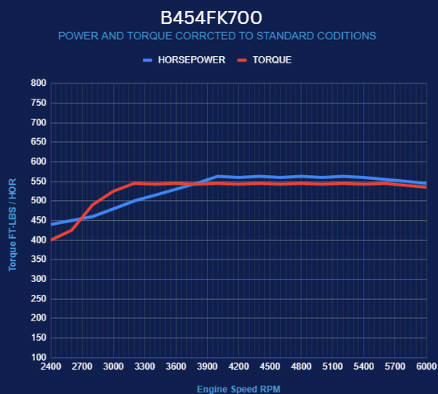

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Single Plane Intake Manifold - BPP427454INT |
|---|---|
| Spark Plug | BPP7938 NGK 7938 BKR5E |
| Harmonic Balancer | BPP350 |
| Flexplate/Flywheel | BPP399774 |
| Fuel Recommendation | 91+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 5 Quarts |
