Horsepower & Torque: 405 Horsepower / 450 ft. lbs. Torque
Cylinder Heads: Cast Iron Vortec
Compression Ratio: 9.5:1
Camshaft: Hydraulic Roller Cam - .495 Intake / .502 Exhaust Lift and 220 Intake / 224 Exhaust Duration @ .050 - 114° LSA
Pistons: Hypereutectic
Crankshaft: Cast Crank - 3.750" Stroke and 5.700" Rods
Fuel Recommendation: 91+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:

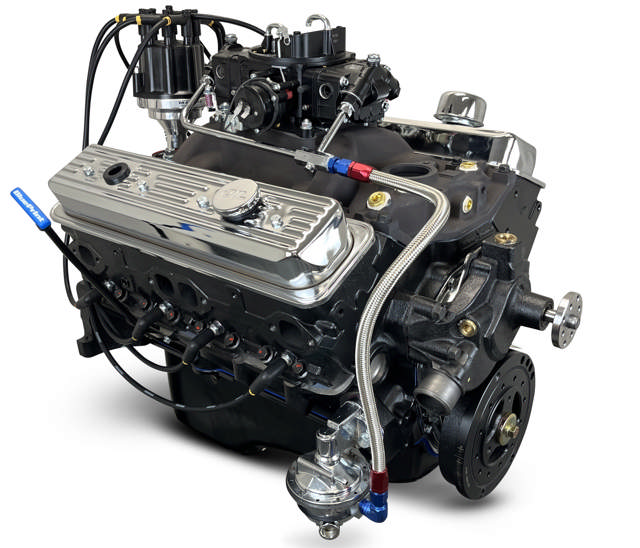

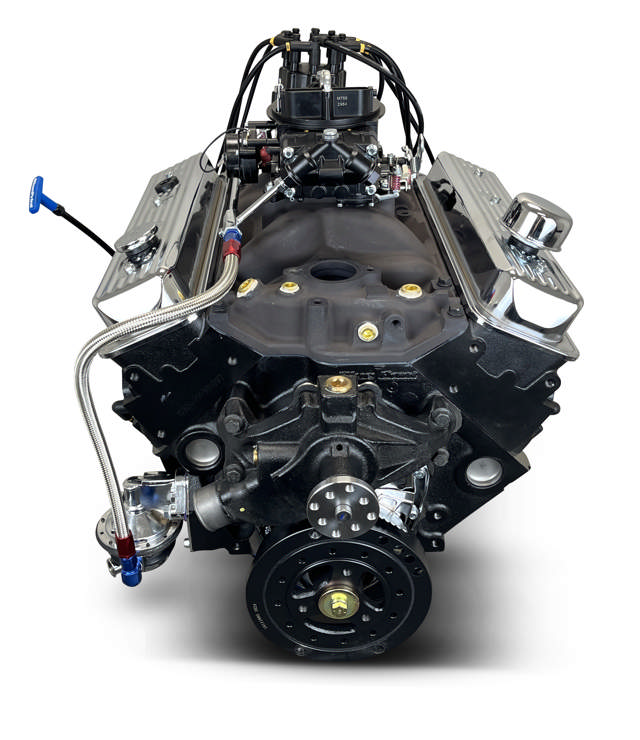

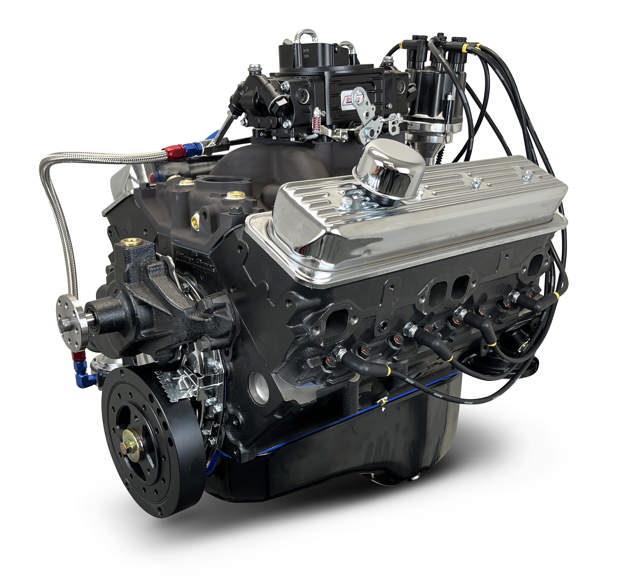

BluePrint Engines delivers proven marine muscle with our 383 c.i. GM Marine Small Block, pumping out a crisp 405 horsepower in a dependable, carbureted package built for life on the water. This base-dressed engine comes equipped with the essential components you need for a clean, straightforward install, all engineered with the precision, durability, and corrosion-resistant quality that marine duty demands. From smooth cruising to throttle-happy fun, this 350 is designed to start easy, run strong, and keep your boat ready for every weekend adventure, season after season.
Description:
- Horsepower & Torque: 405 Horsepower / 450 ft. lbs. Torque
- Compression Ratio: 9.5:1
- Cast Iron Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Cast Crankshaft
- BluePrint Engines Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Square and Parallel Decked
- Align Honed Main Bearing Bore
- Cylinders Honed on Computer -Controlled Machine to Within .0002Straightness and Roundness
- Cylinders are Sonic Tested for Thickness
- 4-Bolt Main
- 4.000" Bore
- 1-Piece Rear Main Seal
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick Drilled and Tapped for Clutch Linkage
Rotating Assembly:
- Cast Crankshaft
- 3.750" Stroke
- OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- External Front/ External Rear Engine Balance
Cylinder Heads:
- Vortec Cast Iron Cylinder Heads
- 1.94 Intake / 1.50 Exhaust Valves
- Hardened Push Rods
- Long Slot Rockers with Positive Lock Adjusting Nuts
Cam Specs:
- Hydraulic Roller
- .495 Intake / .502 Exhaust Lift
- 220 Intake / 224 Exhaust Duration
- @.050-114 Degree Lobe Separation
Also Includes:
- Marine Intake Manifold
- Valve Covers
- Marine Carburetor (Brand will vary due to supply)
- Distributor
- Oil Pan
Notes:
- This engine is designed for CARBURETED use only. It is NOT for use in any factory fuel injected applications.
- Replaces Standard Rotation engines only. Not available as reverse rotation.
- BluePrint Engines recommends the use of a flame arrestor in marine applications and advises checking local laws to ensure compliance with the United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
Blocks
- BluePrint Engines High Strength Cast Iron Block
- Square and Parallel Decked
- Align Honed Main Bearing Bore
- Cylinders Honed on Computer -Controlled Machine to Within .0002Straightness and Roundness
- Cylinders are Sonic Tested for Thickness
- 4-Bolt Main
- 4.000" Bore
- 1-Piece Rear Main Seal
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick Drilled and Tapped for Clutch Linkage
Cylinder Heads
- Vortec Cast Iron Cylinder Heads
- 1.94 Intake / 1.50 Exhaust Valves
- Hardened Push Rods
- Long Slot Rockers with Positive Lock Adjusting Nuts
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.045 in.
Firing Order
1,8,4,3,6,5,7,2
Rotating Assembly
- Cast Crankshaft
- 3.750" Stroke
- OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- External Front/ External Rear Engine Balance
Cam Specs
- Hydraulic Roller
- .495 Intake / .502 Exhaust Lift
- 220 Intake / 224 Exhaust Duration
- @.050-114 Degree Lobe Separation
Stall Converter
N/A
Also Includes
- Marine Intake Manifold
- Valve Covers
- Marine Carburetor (Brand will vary due to supply)
- Distributor
- Oil Pan
Notes
- This engine is designed for CARBURETED use only. It is NOT for use in any factory fuel injected applications.
- Replaces Standard Rotation engines only. Not available as reverse rotation.
- BluePrint Engines recommends the use of a flame arrestor in marine applications and advises checking local laws to ensure compliance with the United States Coast Guard Requirements for Ignition Protection & Fire Resistance.

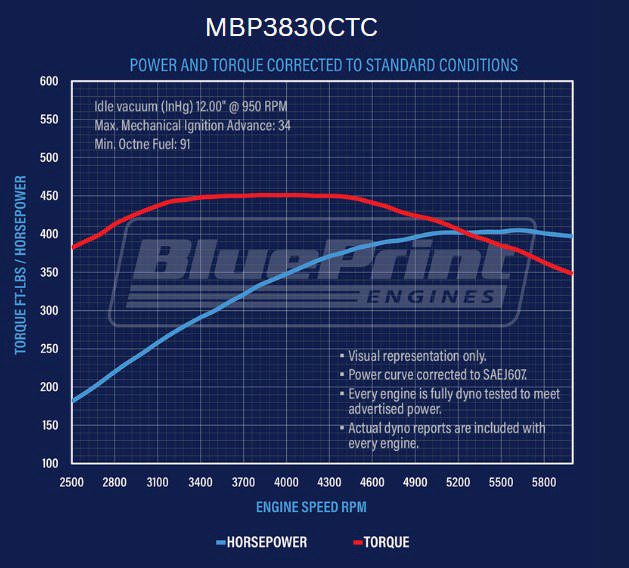

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Marine, Aluminum |
|---|---|
| Spark Plug (Not Included) | AC Delco 41-993 |
| Harmonic Balancer | BPP400L |
| Flexplate/Flywheel (Not Included) | BPP871006 |
| Fuel Recommendation | 91+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 5 Quarts |
