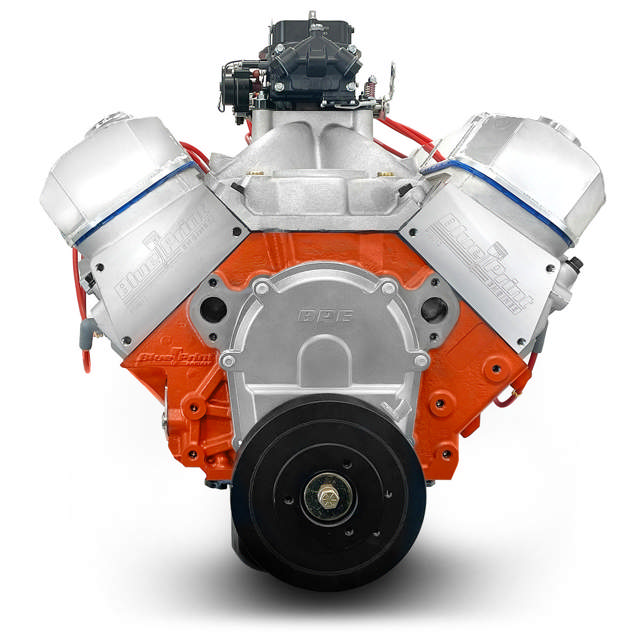

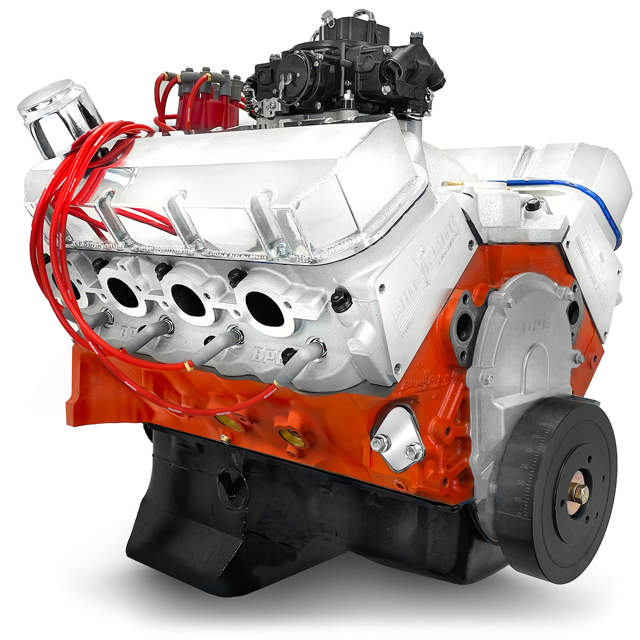

BluePrint Engines GM Marine Big Block Compatible 632 c.i. Pro Series Engine - 775 Horsepower - Base Dressed - Carbureted
$18,149.00
632 c.i.
775 Horsepower
Base Dress
Horsepower & Torque: 775 Horsepower / 800 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10:1
Camshaft: Hydraulic Roller Cam - .647 Intake / .647 Exhaust Lift and 258 Intake / 266 Exhaust Duration @ .050 - 112° LSA
Pistons: Forged
Crankshaft: Steel Crank - 4.750" Stroke and 6.635" Rods
Fuel Recommendation: 91+ Octane
Secure Payments
Financing available at checkout with Affirm
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:
BluePrint Engines takes big-water performance to the extreme with our Marine Big Block compatible 632 c.i. Pro-Series engine, delivering a massive 775 horsepower in a base-dressed, carbureted package built for serious offshore attitude. This engine is engineered for high-load, high-RPM marine abuse. This engine is precision machined, assembled with premium components, and designed to push heavy boats with authority. Its huge displacement and Pro-Series pedigree deliver relentless torque, explosive top-end pull, and the kind of reliability you need when wide-open throttle is more than a moment—it’s a lifestyle. If you want the biggest, baddest big block on the water, this 632 is ready to rule the waves.
Description:
- Horsepower & Torque: 775 Horsepower / 800 ft. lbs. Torque
- Compression Ratio: 10.0:1
- BluePrint Engines Aluminum Heads
- BluePrint Engine Hydraulic Roller Cam
- BluePrint Engine Forged Crank
- BluePrint Engine Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block, 10.2" Deck Height
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.500"
- 1-Piece Rear Main Seal
- Mech Fuel Pump Provision: Yes
Rotating Assembly:
- New BluePrint Forged Crankshaft
- 4.750" Stroke
- Forged H-beam connecting rods
- Forged Pistons
- Internally Balanced
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8012
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 358cc Intake / 125cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
- Must Verify Clearance of Exhaust / Headers
Cam Specs:
- Hydraulic Roller
- .647 Intake / .647 Exhaust Lift
- 258 Intake / 266 Exhaust Duration
- @.050-112 Degree Lobe Separation
Also Includes:
- 1050cfm Carburetor
- Edelbrock Aluminum Intake Manifold
- Distributor
- Valve Covers
- Oil Pan
- Timing Cover
- Spark Plugs
- MSD Spark Plug Wires
- Harmonic Balancer
Notes:
- For boats being used in salt water, BluePrint Engines recommends a closed cooling system be used as the aluminum cylinder heads and intake manifolds do not have brass lined water passages.
- Replaces Standard Rotation engines only. Not available as reverse rotation.
- BluePrint Engines recommends the use of a flame arrestor in marine applications and advises checking local laws to ensure compliance with the United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
WARNING: Cancer and Reproductive Harm
Blocks
- BluePrint Engines High Strength Cast Iron Block, 10.2" Deck Height
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.500"
- 1-Piece Rear Main Seal
- Mech Fuel Pump Provision: Yes
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - PS8012
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 358cc Intake / 125cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
- Must Verify Clearance of Exhaust / Headers
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.045"
Firing Order
1,8,4,3,6,5,7,2
Rotating Assembly
- New BluePrint Forged Crankshaft
- 4.750" Stroke
- Forged H-beam connecting rods
- Forged Pistons
- Internally Balanced
Cam Specs
- Hydraulic Roller
- .647 Intake / .647 Exhaust Lift
- 258 Intake / 266 Exhaust Duration
- @.050-112 Degree Lobe Separation
Stall Converter
N/A
Also Includes
- 1050cfm Carburetor
- Edelbrock Aluminum Intake Manifold
- Distributor
- Valve Covers
- Oil Pan
- Timing Cover
- Spark Plugs
- MSD Spark Plug Wires
- Harmonic Balancer
Notes
- For boats being used in salt water, BluePrint Engines recommends a closed cooling system be used as the aluminum cylinder heads and intake manifolds do not have brass lined water passages.
- Replaces Standard Rotation engines only. Not available as reverse rotation.
- BluePrint Engines recommends the use of a flame arrestor in marine applications and advises checking local laws to ensure compliance with the United States Coast Guard Requirements for Ignition Protection & Fire Resistance.

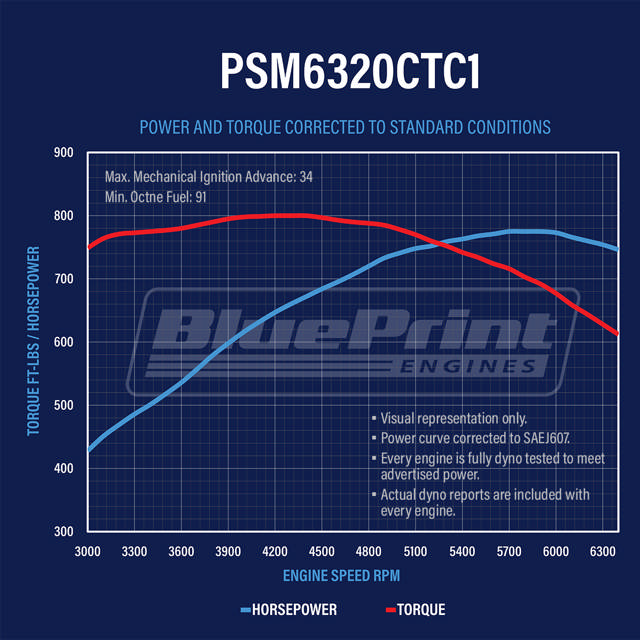

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Edelbrock Aluminum Intake Manifold |
|---|---|
| Spark Plug | BPP7938 - NGK 7938 BKR5E |
| Harmonic Balancer | BPP454I |
| Flexplate/Flywheel (Not Included) | Non-Weighted |
| Fuel Recommendation | 91+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 8 Quarts |
