Horsepower & Torque: 350 Horsepower / 350 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 9.4:1
Camshaft: Hydraulic Roller Cam - .495 Intake / .502 Exhaust Lift and 220 Intake / 224 Exhaust Duration @ .050-114° LSA
Pistons: Hypereutectic
Crankshaft: Forged Crank - 3.250" Stroke and Forged 5.700" Rods
Fuel Recommendation: 87+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:
Description:
- Horsepower and Torque: 350 Horsepower / 350 ft. lbs. Torque
- Compression Ratio: 9.4:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.000" Bore
Rotating Assembly:
- BluePrint Forged Crankshaft
- 3.250" Stroke
- Forged 5.700" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Internally Balanced Front - External Balanced Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - H8002K
- 64cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 195cc Intake / 75cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .495 Intake / .502 Exhaust Lift
- 220 Intake / 224 Exhaust Duration
- @ .050-114 Degree Lobe Separation
Ignition Timing:
- 32-34 Degrees Total at 3500 RPM
Also Includes:
- Under Header Spark Plug Wires (Perfect for Rams Horn exhaust manifolds)
- BluePrint Tach Drive Pro Billet Ready Run Distributor - BPP3503TDBK
- Holley Sniper 2 EFI System - BPP550-510-3XX
- Aluminum Intake Manifold - BPP350VINT
- Thermostat Housing - BPP10108470
- Premium Vintage Valve Covers
- Premium Vintage Air Cleaner
- 6.75-inch Harmonic Balancer
- Thermostat - BPP180TS
- Timing Cover
- Spark Plugs
- Oil Pan
Notes:
- Not for use in pollution-controlled vehicles.
Blocks
- BluePrint Engines High Strength Cast Iron Block
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.000" Bore
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - H8002K
- 64cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 195cc Intake / 75cc Exhaust Runners
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.035 in.
Firing Order
1,8,4,3,6,5,7,2
Rotating Assembly
- BluePrint Forged Crankshaft
- 3.250" Stroke
- Forged 5.700" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Internally Balanced Front - External Balanced Rear
Cam Specs
- Hydraulic Roller
- .495 Intake / .502 Exhaust Lift
- 220 Intake / 224 Exhaust Duration
- @ .050-114 Degree Lobe Separation
Stall Converter
2000-2400 RPM
Also Includes
- Under Header Spark Plug Wires (Perfect for Rams Horn exhaust manifolds)
- BluePrint Tach Drive Pro Billet Ready Run Distributor - BPP3503TDBK
- Holley Sniper 2 EFI System - BPP550-510-3XX
- Aluminum Intake Manifold - BPP350VINT
- Thermostat Housing - BPP10108470
- Premium Vintage Valve Covers
- Premium Vintage Air Cleaner
- 6.75-inch Harmonic Balancer
- Thermostat - BPP180TS
- Timing Cover
- Spark Plugs
- Oil Pan
Notes
- Not for use in pollution-controlled vehicles.

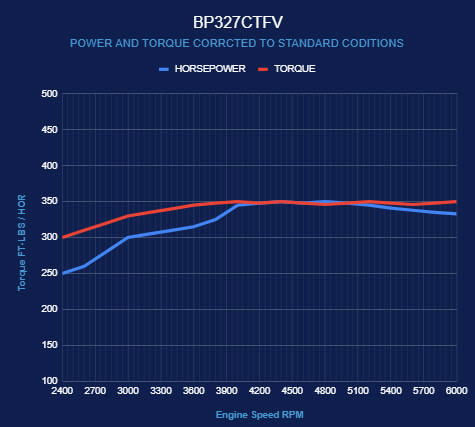

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Aluminum Intake Manifold - BPP350VINT |
|---|---|
| Spark Plug | BPP7938 - NGK 7938 BKR5E |
| Harmonic Balancer | BPP350 |
| Flexplate/Flywheel (Not Included) | BPP871006 |
| Fuel Recommendation | 87+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 5 Quarts |
Header Partners:
- Click Here for our Header Partners and recommendations.
Better Than the Rest.
The satisfaction of our customers is our highest priority at BluePrint Engines. Every engine we build is assembled with premium components, balanced to within two grams, and dyno-tested to verify real horsepower and torque before it leaves our facility.
All BluePrint products include warranty protection designed specifically for how they're used. Our complete crate engines carry our industry-leading 30-month / 50,000-mile warranty, offering the confidence and peace of mind serious builders expect. Other BluePrint products—including bare blocks, marine engines, transmissions, race applications, and cylinder heads—feature warranty coverage tailored to their intended use and operating conditions.
For full terms and specific coverage by product category, download our warranty guide below. It contains complete details, limitations, and instructions for warranty registration and claims.
Already Own this engine?
Protect your investment by registering your warranty today. Register below to ensure coverage and stay up to date on important service information.
Register NowEVERY BLUEPRINT ENGINE ACES THE DYNO TEST
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer in our in-house dyno testing rooms to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That’s precisely why our engines sound and run better than our competitors.
All specs, zero speculation: A comprehensive, dyno-generated printout showing your critical engine specs will accompany your delivered engine — every time. No more guessing or wondering what your installed engine’s real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash ‘em your exact engine’s dyno results.
