Horsepower & Torque: 341 Horsepower / 371 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 9.2:1
Camshaft: Hydraulic Roller Cam - .477 Intake / .471 Exhaust Lift and 202 Intake / 212 Exhaust Duration @.050-115° LSA
Pistons: Hypereutectic
Crankshaft: Cast Crank - 3.480" Stroke and 5.700" Rods
Fuel Recommendation: 87+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:

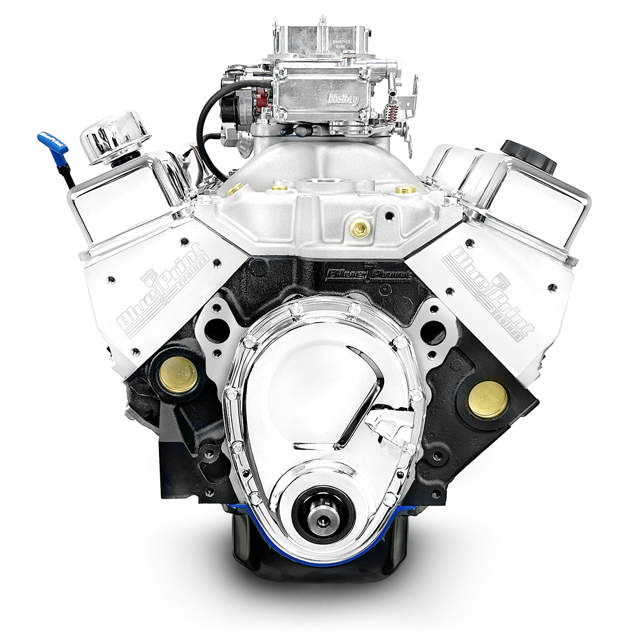

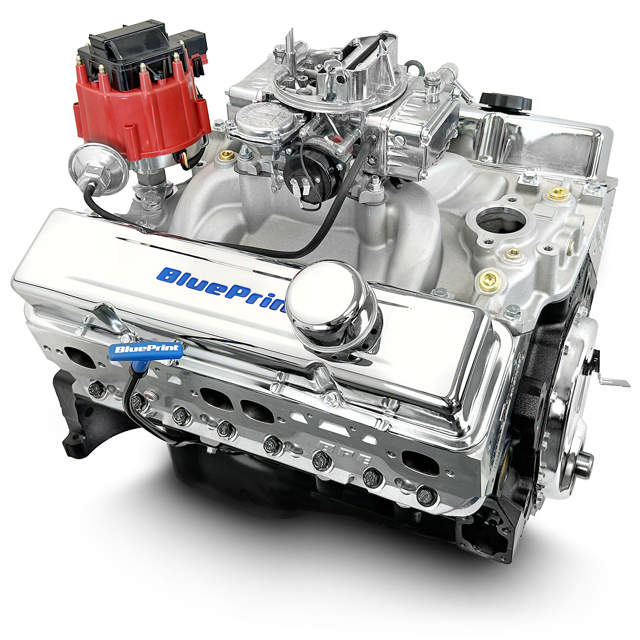

These 350 cubic inch small block crate engine packs a dyno-proven 341 horsepower and 371 lb-ft of torque, giving your ride the street power it deserves. Fully dressed with a carburetor, distributor, oil pan, timing cover, and valve covers, this engine arrives ready to drop in and dominate. Built brand-new from the block up, tested for performance, and backed by a 30-month/50,000-mile warranty, it’s the perfect blend of tradition and turn-key convenience. Whether you’re restoring a classic or upgrading your project car, it delivers the punch, the sound, and the confidence of true American V8 performance.
Description:
- Horsepower & Torque: 341 Horsepower / 371 ft. lbs. Torque
- Compression Ratio: 9.2:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Cast Crankshaft
- BluePrint Engines Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.000" Bore
Rotating Assembly:
- Cast Crankshaft
- 3.480" Stroke
- Forged 5.700" Connecting Rods
- Hypereutectic Pistons
- Internally Balanced Front - Externally Balanced Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - H8002K
- 64cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 195cc Intake / 75cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .477 Intake / .471 Exhaust Lift
- 202 Intake / 212 Exhaust Duration
- @ .050-115 Degree Lobe Separation
Ignition Timing:
- 32 Degrees Total at 3500 RPM
Also Includes:
- Holley Street Warrior 600cfm - BPP080457SA
- Dual Plane Satin Aluminum Intake - BPP350VINT
- HEI Ready Run Distributor - BPP350RBK
- BluePrint Logo'd Valve Covers - BPP9518
- BluePrint Dipstick - BPP9420
- Rear Sump Oil Pan
- Timing Cover
Notes:
- This engine is an excellent cruiser and daily driver engine. This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
Blocks
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.000" Bore
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - H8002K
- 64cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 195cc Intake / 75cc Exhaust Runners
Ignition Timing
32 Degrees Total at 3500 RPM
Spark Plug
.035 in.
Firing Order
1,8,4,3,6,5,7,2
Rotating Assembly
- Cast Crankshaft
- 3.480" Stroke
- Forged 5.700" Connecting Rods
- Hypereutectic Pistons
- Internally Balanced Front - Externally Balanced Rear
Cam Specs
- Hydraulic Roller
- .477 Intake / .471 Exhaust Lift
- 202 Intake / 212 Exhaust Duration
- @ .050-115 Degree Lobe Separation
Stall Converter
OEM
Also Includes
- Holley Street Warrior 600cfm - BPP080457SA
- Dual Plane Satin Aluminum Intake - BPP350VINT
- HEI Ready Run Distributor - BPP350RBK
- BluePrint Logo'd Valve Covers - BPP9518
- BluePrint Dipstick - BPP9420
- Rear Sump Oil Pan
- Timing Cover
Notes
- This engine is an excellent cruiser and daily driver engine. This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.

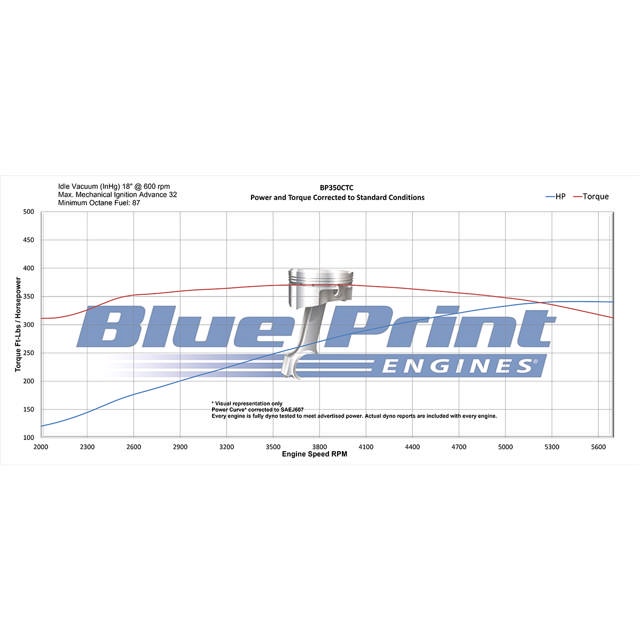

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Dual Plane Satin Aluminum Intake - BPP350VINT |
|---|---|
| Spark Plug (Not Included) | BPP7938 - NGK 7938 BKR5E |
| Harmonic Balancer (Not Included) | BPP350 |
| Flexplate/Flywheel (Not Included) | BPP871006 - BPP399173 - BPP300116 |
| Fuel Recommendation | 87+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 5 Quarts |
Header Partners:
- Click Here for our Header Partners and recommendations.
Better Than the Rest.
The satisfaction of our customers is our highest priority at BluePrint Engines. Every engine we build is assembled with premium components, balanced to within two grams, and dyno-tested to verify real horsepower and torque before it leaves our facility.
All BluePrint products include warranty protection designed specifically for how they're used. Our complete crate engines carry our industry-leading 30-month / 50,000-mile warranty, offering the confidence and peace of mind serious builders expect. Other BluePrint products—including bare blocks, marine engines, transmissions, race applications, and cylinder heads—feature warranty coverage tailored to their intended use and operating conditions.
For full terms and specific coverage by product category, download our warranty guide below. It contains complete details, limitations, and instructions for warranty registration and claims.
Already Own this engine?
Protect your investment by registering your warranty today. Register below to ensure coverage and stay up to date on important service information.
Register NowEVERY BLUEPRINT ENGINE ACES THE DYNO TEST
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer in our in-house dyno testing rooms to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That’s precisely why our engines sound and run better than our competitors.
All specs, zero speculation: A comprehensive, dyno-generated printout showing your critical engine specs will accompany your delivered engine — every time. No more guessing or wondering what your installed engine’s real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash ‘em your exact engine’s dyno results.
