Overview:

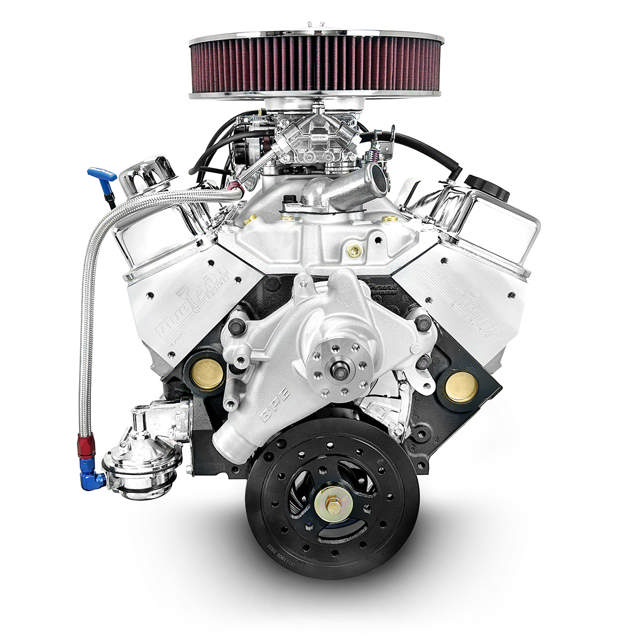

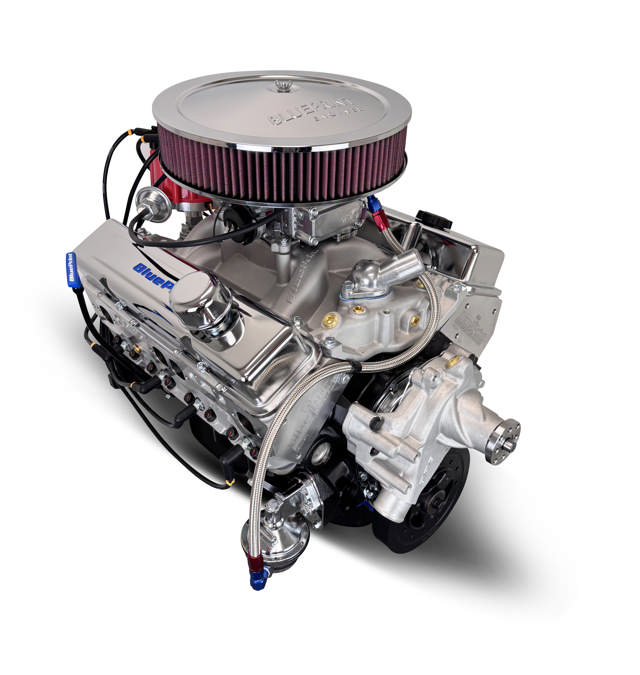

This 350 cubic inch Chevy small block crate engine delivers a dyno-proven 341 horsepower and 371 lb-ft of torque, giving your ride the muscle it deserves. Dressed with essentials like the carburetor, distributor, oil pan, timing cover, and valve covers, arrives ready to drop in and roar to life. Tested for performance and backed by a 30-month/50,000-mile warranty, it’s the ultimate blend of classic Chevy sound, modern reliability, and turnkey convenience. Whether you’re restoring a legend or building your dream project, these engines deliver the punch, the pride, and the unmistakable thrill of true American V8 performance.

Description:

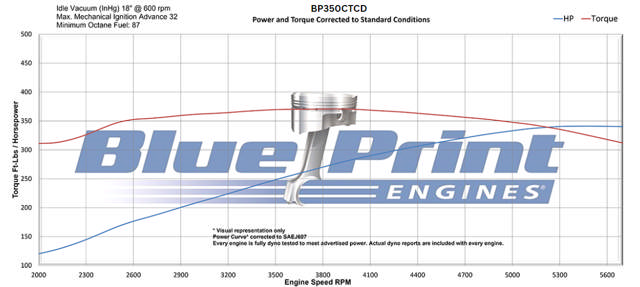

• Horsepower & Torque: 341 Horsepower / 371 ft. lbs. Torque
• Compression Ratio: 9.2:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam

• BluePrint Engines Cast Crankshaft

• BluePrint Engines Hypereutectic Pistons


Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.000" Bore


Rotating Assembly:

• Cast Crankshaft

• 3.480" Stroke
• Forged 5.700" Connecting Rods
• Hypereutectic Pistons
• Internally Balanced Front - Externally Balanced Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - H8002K
• 64cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 195cc Intake / 75cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .477 Intake / .471 Exhaust Lift
• 202 Intake / 212 Exhaust Duration
• @ .050-115 Degree Lobe Separation

Ignition Timing:

• 32 Degrees Total at 3500 RPM

Also Includes:

• Holley Street Warrior 600cfm - BPP080457SA
• Dual Plane Satin Aluminum Intake - BPP350VINT
• Standard Rotation Long Style Water Pump
• BluePrint Logo'd Valve Covers - BPP9518
• Fuel Pump Block Off Plate - BPP42463
• Thermostat and Thermostat Housing
• BluePrint Dipstick - BPP9420
• HEI Distributor - BPP350RBK
• 14" BluePrint Air Cleaner
• Spark Plugs - BPP7938
• Rear Sump Oil Pan
• Harmonic Balancer
• Spark Plug Wires
• Timing Cover
• Oil Pump

Notes:

• This engine is an excellent cruiser and daily driver engine. This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
