SKU: BP38321SP

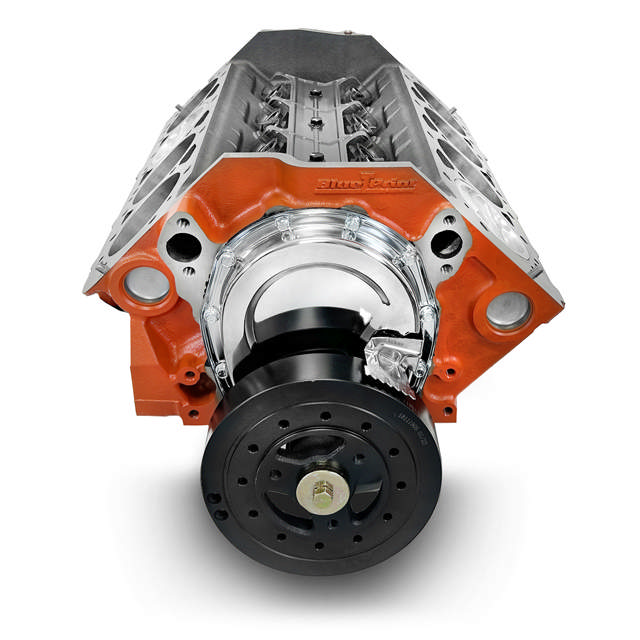

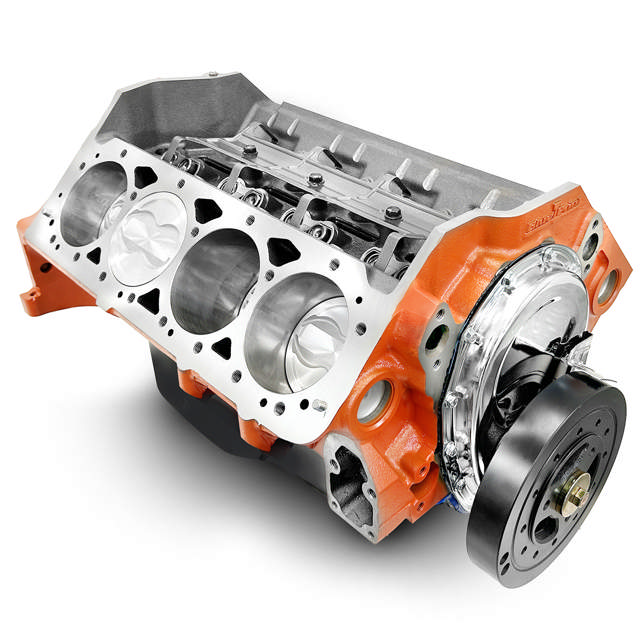

BluePrint Engines GM Small Block Compatible 383 c.i. Engine - 432 Horsepower - Power Adder - Short Block Plus
$5,749.00
383 c.i.
430 Horsepower
Short Block
Horsepower & Torque: 432 Horsepower / 450 ft. lbs. Torque
Compression Ratio: 9.5:1 with 64cc Head and .041" Thick Gasket - 18 cc Dish Volume
Camshaft: Hydraulic Roller Cam - .495 Intake / .502 Exhaust Lift and 220 Intake / 224 Exhaust Duration @ .050-114° LSA
Pistons: Forged
Crankshaft: Forged Steel Crank - 3.750" Stroke and 5.700" Rods
Fuel Recommendation: 91+ Octane
Secure Payments
Financing available at checkout with Affirm
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:
BluePrint Engines’ Small Block Plus 383 delivers the perfect blend of street manners and hard-hitting performance, now with full customization to match your build. This stroker wakes up any classic or hot rod with big torque, crisp throttle response, and the signature reliability BluePrint is known for. With premium components, precision machining, and dyno-proven power, the Small Block Plus 383 gives builders a ready-to-run upgrade that’s powerful, responsive, and tailored to your exact vision—mile after mile.
Description:
- Horsepower & Torque: 432 Horsepower / 450 ft. lbs. Torque
- Compression Ratio: 9.5:1
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Pistons
- BluePrint Engines Forged Crank
Block:
- BluePrint Engines High Strength Cast Iron Block
- Cylinders Honed on Computer-Controlled Machine to Within .0002 Straightness and Roundness
- Cylinders are Sonic Tested for Thickness
- Align Honed Main Bearing Bore
- Passenger Side Dipstick
- 1 Piece Rear Main Seal
- 4 Bolt Main
- 4.00" Bore
Rotating Assembly:
- New Forged Crankshaft
- 3.75" Stroke
- Forged Pistons, 18cc Dish
- Forged Rods with 150,000 PSI Bolts
Cam Specs w 1.5 Rocker Ratio:
- Hydraulic Roller
- .495 Intake / .502 Exhaust Lift
- 220 Intake / 224 Exhaust Duration
- @ .050-114 Degree Lobe Separation
Ignition Timing:
- 34 Degrees Total (at 3500 RPM)
Also Includes:
- Heavy Duty Double Roller Timing Set
- High Volume Oil Pump
- Harmonic Balancer
- Timing Cover
- Oil Pan
WARNING: Cancer and Reproductive Harm
Blocks
- BluePrint Engines High Strength Cast Iron Block
- Cylinders Honed on Computer-Controlled Machine to Within .0002 Straightness and Roundness
- Cylinders are Sonic Tested for Thickness
- Align Honed Main Bearing Bore
- Passenger Side Dipstick
- 1 Piece Rear Main Seal
- 4 Bolt Main
- 4.00" Bore
Cylinder Heads
- N/A
Ignition Timing
- Initial Timing 10-16 - Total Timing 32-34
Spark Plug
- .035 in.
Firing Order
- 1,8,4,3,6,5,7,2
Rotating Assembly
- Forged Crankshaft
- 3.75" Stroke
- Forged Pistons, 18cc Dish
- Forged Rods with 150,000 PSI Bolts
Cam Specs
- w 1.5 Rocker Ratio
- Hydraulic Roller
- .495 Intake / .502 Exhaust Lift
- 220 Intake / 224 Exhaust Duration
- @ .050-114 Degree Lobe Separation
Stall Converter
- 2000-2400 RPM
Also Includes
- Heavy Duty Double Roller Timing Set
- High Volume Oil Pump
- Harmonic Balancer
- Timing Cover
- Oil Pan
Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold (Not Included) | N/A |
|---|---|
| Spark Plug (Not Included) |
|
| Harmonic Balancer | BPP350 |
| Flexplate/Flywheel (Not Included) | BPP871006 - BPP399173 - BPP300116 |
| Fuel Recommendation | 91+ Octane or Higher Depending on Cylinder Head Choice |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 5 Quarts |
