Overview:

Description:

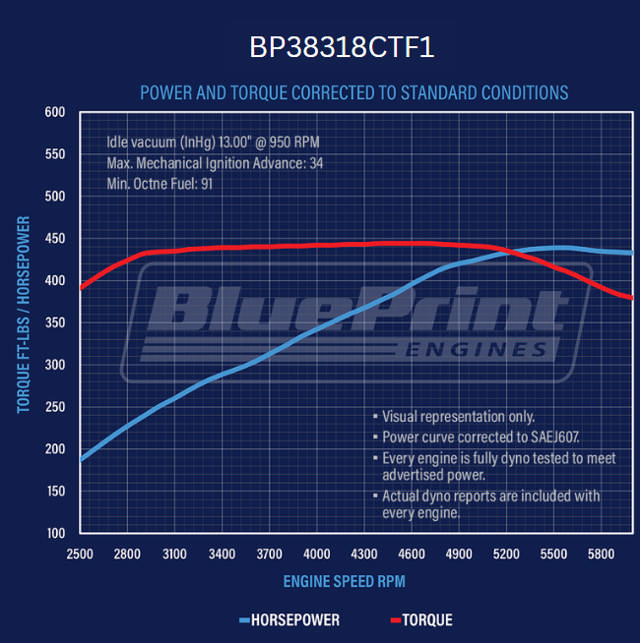

• Horsepower & Torque: 436 Horsepower / 443 ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam

• BluePrint Engines Hypereutectic Pistons
• BluePrint Engines Cast Crankshaft

Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.000" Bore

Rotating Assembly:

• Cast Crankshaft
• 3.750" Stroke
• OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
• Hypereutectic Pistons
• External Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - H8002K
• 64cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 195cc Intake / 75cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .544 Intake / .555 Exhaust Lift
• 230 Intake / 236 Exhaust Duration
• @ .050-110 Degree Lobe Separation Angle

Ignition Timing:

• Initial Timing 10-16° and Total Timing 32-34°

Also Includes:

• Intake Manifold Dual Plane, Satin Aluminum - BPP350VINT
• Holley Sniper 2 EFI System - BPP550-510-3XX
• Fuel Pump Block Off Plate - BPP42463
• Distributor - BPP350RBK
• BluePrint Dipstick - BPP9420
• Valve Covers - BPP9518
• Timing Cover
• Oil Pan

Notes:

• This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
• Not for EGR.
• Engine package does not include fuel pump.
• Engine is configured to run in fuel only mode.
• The Aftermarket intake manifold installed on this engine may not be compatible with OEM accessory brackets that use intake mounted bosses.

• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
