Horsepower & Torque: 415 Horsepower / 430 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 8.9:1
Camshaft: Hydraulic Roller Cam - .536 Intake / .555 Exhaust Lift and 224 Intake / 236 Exhaust Duration @ .050 - 113° LSA
Pistons: Forged
Crankshaft: Steel Crank - 3.750" Stroke and 5.700" Rods
Fuel Recommendation: 87+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:
Description:
- Horsepower & Torque: 415 Horsepower / 430 ft. lbs. Torque
- Compression Ratio: 8.9:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
- Power Adder Engine
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.000"
Rotating Assembly:
- BluePrint Forged Crankshaft
- 3.750" Stroke
- Forged I-beam 5.700" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Externally Balanced Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - H8002K
- 64cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 195cc Intake / 75cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .536 Intake / .555 Exhaust Lift
- 224 Intake / 236 Exhaust Duration
- @ .050-113 Degree Lobe Separation
Ignition Timing:
- Initial Timing 10-16 ° and Total Timing 32-34 °
Also Includes:
- Built with a Dual Keyway Crank
- Passenger Side Dipstick
- BluePrint Logo'd Valve Covers - BPP9518
- BluePrint Dipstick - BPP9420
- Harmonic Balancer
- Timing Cover
- Oil Pump
- Oil Pan
Notes:
- This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
- Not for EGR.
- Power Adder Engine.
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
Blocks
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.000"
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - H8002K
- 64cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 195cc Intake / 75cc Exhaust Runners
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.035 in.
Firing Order
1,8,4,3,6,5,7,2
Rotating Assembly
- BluePrint Forged Crankshaft
- 3.750" Stroke
- Forged I-beam 5.700" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Externally Balanced Rear
Cam Specs
- Hydraulic Roller Cam
- .536 Intake / .555 Exhaust Lift
- 224 Intake / 236 Exhaust Duration
- @ .050-113 Degree Lobe Separation
Stall Converter
2000-2400 RPM
Also Includes
- Built with a Dual Keyway Crank
- Passenger Side Dipstick
- BluePrint Logo'd Valve Covers - BPP9518
- BluePrint Dipstick - BPP9420
- Harmonic Balancer
- Timing Cover
- Oil Pump
- Oil Pan
Notes
- This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
- Not for EGR.
- Power Adder Engine.
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.

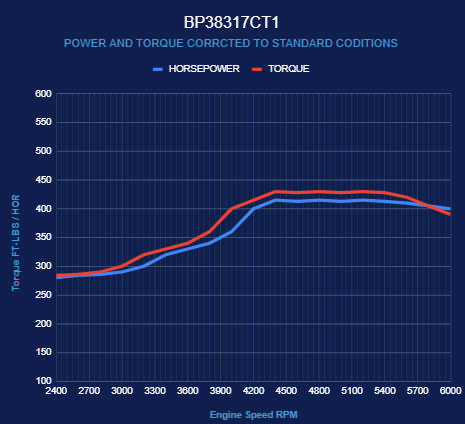

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold (Not Included) | N/A |
|---|---|
| Spark Plug (Not Included) | BPP7938 - NGK 7938 BKR5E |
| Harmonic Balancer (Not Included) | BPP350 |
| Flexplate/Flywheel (Not Included) | BPP871006 - BPP399173 - BPP300116 |
| Fuel Recommendation | 87+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 5 Quarts |
