Horsepower & Torque: 540 Horsepower / 535 ft. lbs. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10:1
Camshaft: Hydraulic Roller Cam - .577 Intake / .577 Exhaust Lift and 240 Intake / 248 Exhaust Duration @.050-112° LSA
Pistons: Forged
Crankshaft: Forged Steel Crank - 4.000" Stroke and Forged 6.000" Rods
Fuel Recommendation: 91+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:
Description:
- Horsepower & Torque: 540 Horsepower / 535 ft. lbs. Torque
- Compression Ratio: 10.0:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.125" Bore
Rotating Assembly:
- BluePrint Forged Crankshaft
- 4.000" Stroke
- Forged 6.000" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - HP8103
- 64cc Chamber
- 2.08" Intake / 1.60" Exhaust Valves
- 220cc Intake / 67cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .577 Intake / .577 Exhaust Lift
- 240 Intake / 248 Exhaust Duration
- @ .050-112 Degree Lobe Separation
Ignition Timing:
- Initial Timing 10-16° and Total Timing 32-34°
Also Includes:
- Holley 850cfm Double Pumper Carburetor w/ Manual Choke - BPP04781S
- Pro Series Ready Run Distributor - BPP3503BK
- Intake Manifold - BPP427454INT
- BluePrint Valve Covers - BPP9518
- BluePrint Dipstick - BPP9420
- Spark Plugs and Wires
- Harmonic Balancer
- Timing Cover
- Oil Pan
Notes:
- Not for use in pollution-controlled vehicles.
Blocks
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.125" Bore
Cylinder Heads
- BluePrint Aluminum Cylinder Heads - HP8103
- 64cc Chamber
- 2.08" Intake / 1.60" Exhaust Valves
- 220cc Intake / 67cc Exhaust Runners
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.035 in.
Firing Order
1,8,4,3,6,5,7,2
Rotating Assembly
- BluePrint Forged Crankshaft
- 4.000" Stroke
- Forged 6.000" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cam Specs
- Hydraulic Roller
- .577 Intake / .577 Exhaust Lift
- 240 Intake / 248 Exhaust Duration
- @ .050-112 Degree Lobe Separation
Stall Converter
2200+ RPM
Also Includes
- Holley 850cfm Double Pumper Carburetor w/ Manual Choke - BPP04781S
- Pro Series Ready Run Distributor - BPP3503BK
- Intake Manifold - BPP427454INT
- BluePrint Valve Covers - BPP9518
- BluePrint Dipstick - BPP9420
- Spark Plugs and Wires
- Harmonic Balancer
- Timing Cover
- Oil Pan
Notes
- Not for use in pollution-controlled vehicles.

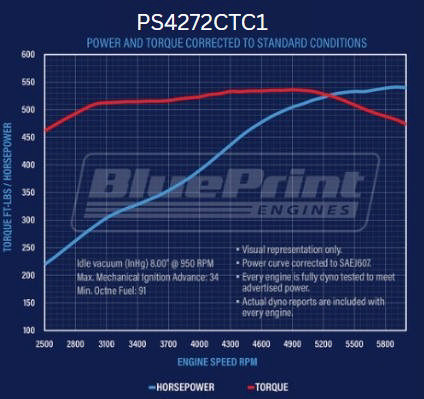

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Single Plane, Satin Aluminum Intake Manifold - BPP427454INT |
|---|---|
| Spark Plug (Not Included) | BPP7938 - NGK 7938 BKR5E |
| Harmonic Balancer | BPP350 |
| Flexplate/Flywheel (Not Included) | BPP399774 - BPP460265 |
| Fuel Recommendation | 91+ Octane |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 5 Quarts |
