Horsepower & Torque: 610 Horsepower / 525 ft. lbs. Torque
Cylinder Heads: Gen III Hemi Apache Aluminum Cylinder Heads
Compression Ratio: 10.48:1
Camshaft: Hydraulic Roller Cam - .610 Intake/ .611 Exhaust Lift and 231 Intake/ 255 Exhaust Duration @ .050-113° LSA
Pistons: Forged
Crankshaft: Forged Steel Crank - 4.050" Stroke and Forged 6.125" Connecting Rods
Fuel Recommendation: 91+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:
This high-performance Gen III HEMI engine is purpose-built for serious street applications, combining durability, power, and modern technology. At its core is a new “BGE” Hellcat/Apache engine block featuring a 4-bolt main and 1-piece rear main seal, paired with a forged crankshaft (4.050" stroke), forged pistons, and 6.125" connecting rods for a strong, internally balanced rotating assembly. With a 4.090" bore and Gen III HEMI Apache aluminum heads (73cc chambers), this engine delivers exceptional airflow through 2.140" intake and 1.650" exhaust valves. A hydraulic roller cam (.614"/.614" lift, 231/255 duration @ .050", 115° LSA) provides a broad powerband ideal for street performance. It accepts modern 6.1L, 6.4L, or 2009+ 5.7L intake manifolds, though it’s not compatible with the stock Hellcat supercharger. With a mid-sump oil pan for muscle car swaps, matching ignition components, and complete accessories like valve covers, timing cover, water pump, and harmonic balancer, this engine is a perfect fit for high-horsepower street builds that demand reliability and aggressive performance.
Description:
- Horsepower and Torque: 610 Horsepower / 525 ft. lbs. Torque
- Compression Ratio: 10.48:1
- Gen III Hemi Apache Aluminum Cylinder Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- NEW “BGE” Hellcat / Apache Engine Block
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.090" Bore
Rotating Assembly:
- Forged Crank
- 4.050" Stroke
- 6.125" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- Gen III Hemi Apache Aluminum Cylinder Heads
- 73cc Chamber
- 2.140" Intake / 1.650" Exhaust Valves
- Can Accept 6.1, 6.4 or 2009+ 5.7L Intake Manifolds
- Does Not Accept 2008 or Older 5.7L Intakes
- Not Tapped for Stock Hellcat Supercharger. Bolt Pattern Differs from N/A Intake
Cam Specs:
- Hydraulic Roller Cam
- .614 Intake / .614 Exhaust Lift
- 231 Intake / 255 Exhaust Duration
- @.050-115 Degree Lobe Separation
Also Includes:
- GEN III Hemi Compatible Coils - BPP68238603
- Muscle Car Style - Mid Sump Swap Oil Pan
- Spark Plugs - NGK 97408 / LZTR6AP11EG
- Harmonic Balancer - 5.375" Diameter
- Timing Cover (Car)
- Valve Covers
- Water Pump
Notes:
- Features 2013+ 58X reluctor wheel
- Will work with 2009+ ECU as long as 2013+ Crank sensor is used.
- 2009+ crankshaft spacing
- 2009+ car timing cover
- VVT locked out
- MDS – eliminated
Blocks
- NEW “BGE” Hellcat / Apache Engine Block
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.090" Bore
Cylinder Heads
- Gen III Hemi Apache Aluminum Cylinder Heads
- 73cc Chamber
- 2.140" Intake / 1.650" Exhaust Valves
- Can Accept 6.1, 6.4 or 2009+ 5.7L Intake Manifolds
- Does Not Accept 2008 or Older 5.7L Intakes
- Not Tapped for Stock Hellcat Supercharger. Bolt Pattern Differs from N/A Intake
Ignition Timing
Initial Timing 10-16 - Total Timing 32-34
Spark Plug
.043 in.
Firing Order
1,8,4,3,6,5,7,2
Rotating Assembly
- Forged Crank
- 4.050" Stroke
- 6.125" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cam Specs
- Hydraulic Roller Cam
- .614 Intake / .614 Exhaust Lift
- 231 Intake / 255 Exhaust Duration
- @.050-115 Degree Lobe Separation
Stall Converter
2500+ RPM
Also Includes
- GEN III Hemi Compatible Coils - BPP68238603
- Muscle Car Style - Mid Sump Swap Oil Pan
- Spark Plugs - NGK 97408 / LZTR6AP11EG
- Harmonic Balancer - 5.375" Diameter
- Timing Cover (Car)
- Valve Covers
- Water Pump
Notes
- BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied.
- Features 2013+ 58X reluctor wheel
- Will work with 2009+ ECU as long as paired with 2013+ Crank Sensor.
- 2009+ crankshaft spacing
- 2009+ car timing cover
- VVT locked out
- MDS – eliminated

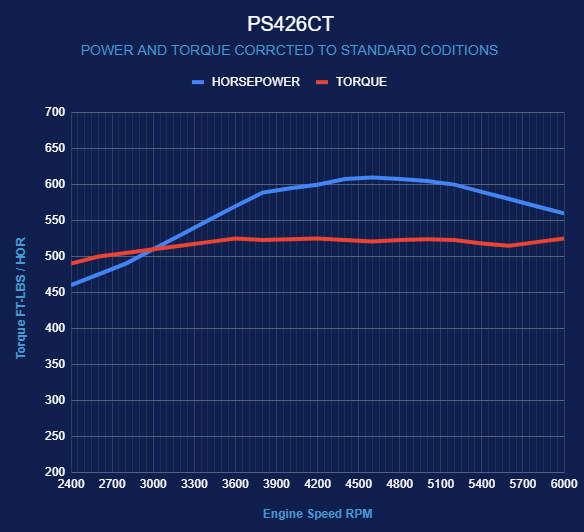

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold (Not Included) | N/A |
|---|---|
| Spark Plug (Not Included) | NGK 97408/ LZTR6AP11EG |
| Harmonic Balancer | Non-Weighted |
| Flexplate/Flywheel (Not Included) | Non-Weighted |
| Fuel Recommendation | 91+ Octane for Street Use - 100+ for Race Applications |
| Recommended Service Oil | BPP10W30 |
| Recommended Oil Filter | BPPB160 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 7 Quarts |
