Horsepower & Torque: 1000 Horsepower / 800 ft. lbs. Torque
Cylinder Heads: Brodix SR20 CNC Ported Heads
Compression Ratio: 10.65:1
Camshaft: Solid Roller Cam - .873 Intake / .861 Exhaust Lift - 293 Intake / 304 Exhaust Duration- @.050-115 Degree Lobe Separation
Pistons: Mahle Forged
Crankshaft: Callies Forged Steel Crank - 4.750" Stroke and Forged 6.635" Connecting Rods
Fuel Recommendation: Street Use Engines 93+ / Race Engines Requires Race Fuel of 100+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:
Description:
- Horsepower & Torque: 1000 Horsepower / 800 ft. lbs. Torque
- Compression Ratio: 10.65:1
- Brodix SR20 CNC Ported Heads
- Solid Roller Cam
- Mahle Forged Pistons
- Callies Forged Steel Crank
Block:
- BluePrint Engines Cast Iron Block
- Manufactured and Machined in the USA!
- Tall Deck (Cylinder Deck is Approx .400 taller / Wider than OEM Block)
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.600" Bore
Rotating Assembly:
- Callies Forged Steel Crank
- 4.750" Stroke
- 6.635" Connecting Rods
- Mahle Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- Brodix SR20 CNC Ported Heads
- 95cc Chamber
- 2.400" Intake / 1.800" Exhaust Valves
- 440 Intake Runner Volume (cc)
Cam Specs:
- Solid Roller Cam
- .874 Intake / .867 Exhaust Lift
- 293 Intake / 305 Exhaust Duration
- @.050-110 Degree Lobe Separation
Also Includes:
- Holley Sniper Stealth 4500
- BluePrint Engines Intake Manifold
- Moroso Aluminum Oil Pan
- MSD Pro Billet Distributor
- SFI Harmonic Balancer
- Spark Plug and Wires
- BluePrint Dipstick
- Timing Cover
Note:
- This engine is built and designed to run on 93 octane pump gas for street use only.
Blocks
- BluePrint Engines Cast Iron Block
- Manufactured and Machined in the USA!
- Tall Deck (Cylinder Deck is Approx .400 taller / Wider than OEM Block)
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.600" Bore
Cylinder Heads
- Brodix SR20 CNC Ported Heads
- 95cc Chamber
- 2.400" Intake / 1.800" Exhaust Valves
- 440 Intake Runner Volume (cc)
Ignition Timing
Ignition Box Provided with Engine
Spark Plug
.035 in.
Firing Order
1,8,7,3,6,5,4,2
Rotating Assembly
- Callies Forged Steel Crank
- 4.750" Stroke
- 6.635" Connecting Rods
- Mahle Forged Pistons
- Internally Balanced Front and Rear
Cam Specs
- Solid Roller Cam
- .874 Intake / .867 Exhaust Lift
- 293 Intake / 305 Exhaust Duration
- @.050-110 Degree Lobe Separation
Stall Converter
3800-4200 RPM
Also Includes
- Holley Sniper Stealth 4500
- BluePrint Engines Intake Manifold
- Moroso Aluminum Oil Pan
- MSD Pro Billet Distributor
- SFI Harmonic Balancer
- Spark Plug and Wires
- BluePrint Dipstick
- Timing Cover
Notes
- For racing or extended wide-open throttle use, race fuel (100+ octane) is required.
- BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied.
- Oil Requirements: 20W50

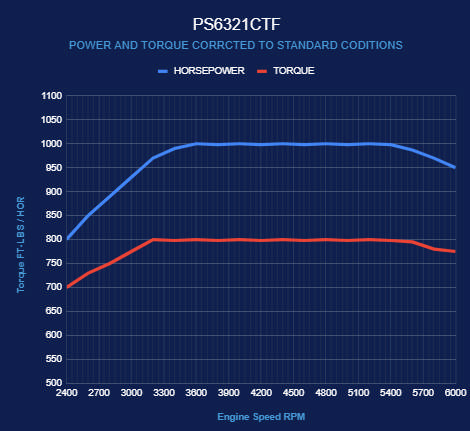

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Single Plane, Satin Aluminum |
|---|---|
| Spark Plug | NGK4644/BKR7E |
| Harmonic Balancer | PB1211SS |
| Flexplate/Flywheel (Not Included) | BPP168T2P - BPP460130 |
| Fuel Recommendation | Street Use Engines 93+ / Race Engines Requires Race Fuel of 100+ Octane |
| Recommended Service Oil | BPP20W50 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 8 Quarts |
Header Partners:
- Click Here for our Header Partners and recommendations.
Better Than the Rest.
The satisfaction of our customers is our highest priority at BluePrint Engines. Every engine we build is assembled with premium components, balanced to within two grams, and dyno-tested to verify real horsepower and torque before it leaves our facility.
All BluePrint products include warranty protection designed specifically for how they're used. Our complete crate engines carry our industry-leading 30-month / 50,000-mile warranty, offering the confidence and peace of mind serious builders expect. Other BluePrint products—including bare blocks, marine engines, transmissions, race applications, and cylinder heads—feature warranty coverage tailored to their intended use and operating conditions.
For full terms and specific coverage by product category, download our warranty guide below. It contains complete details, limitations, and instructions for warranty registration and claims.
Already Own this engine?
Protect your investment by registering your warranty today. Register below to ensure coverage and stay up to date on important service information.
Register NowEVERY BLUEPRINT ENGINE ACES THE DYNO TEST
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer in our in-house dyno testing rooms to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That’s precisely why our engines sound and run better than our competitors.
All specs, zero speculation: A comprehensive, dyno-generated printout showing your critical engine specs will accompany your delivered engine — every time. No more guessing or wondering what your installed engine’s real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash ‘em your exact engine’s dyno results.
