Horsepower & Torque: 1015 Horsepower / 830 ft. lbs. Torque
Cylinder Heads: Brodix SR20 CNC Ported Heads
Compression Ratio: 10.65:1
Camshaft: Solid Roller Cam - .873 Intake / .861 Exhaust Lift - 293 Intake / 304 Exhaust Duration- @.050-115 Degree Lobe Separation
Pistons: Forged
Crankshaft: Forged Steel Crank - 4.750" Stroke and Forged 6.635" Connecting Rods
Fuel Recommendation: Street Use Engines 93+ / Race Engines Requires Race Fuel of 100+ Octane
- Description
- Engine Specs
- Parts & Accessories
- Warranty
Overview:
Description:
- Horsepower & Torque: 1015 Horsepower / 830 ft. lbs. Torque
- Compression Ratio: 10.65:1
- Brodix SR20 CNC Ported Heads
- Solid Roller Cam
- Mahle Forged Pistons
- Callies Forged Steel Crank
Block:
- BluePrint Engines Cast Iron Block
- Manufactured and Machined in the USA!
- Tall Deck (Cylinder Deck is Approx .400 taller / Wider than OEM Block)
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.600" Bore
Rotating Assembly:
- Callies Forged Steel Crank
- 4.750" Stroke
- 6.635" Connecting Rods
- Mahle Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- Brodix SR20 CNC Ported Heads
- 95cc Chamber
- 2.400" Intake / 1.800" Exhaust Valves
- 440 Intake Runner Volume (cc)
Cam Specs:
- Solid Roller Cam
- .874 Intake / .867 Exhaust Lift
- 293 Intake / 305 Exhaust Duration
- @.050-110 Degree Lobe Separation
Also Includes:
- 1475cfm Gen III Holley Ultra Dominator Carburetor
- BluePrint Engines Intake Manifold
- Moroso Aluminum Oil Pan
- MSD Pro Billet Distributor
- SFI Harmonic Balancer
- Spark Plug and Wires
- BluePrint Dipstick
- Timing Cover
Note:
- This engine is built and designed to run on 93 octane pump gas for street use only.
Blocks
- BluePrint Engines Cast Iron Block
- Manufactured and Machined in the USA!
- Tall Deck (Cylinder Deck is Approx .400 taller / Wider than OEM Block)
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.600" Bore
Cylinder Heads
- Brodix SR20 CNC Ported Heads
- 95cc Chamber
- 2.400" Intake / 1.800" Exhaust Valves
- 440 Intake Runner Volume (cc)
Ignition Timing
Ignition Box Provided with Engine
Spark Plug
.035 in.
Firing Order
1,8,7,3,6,5,4,2
Rotating Assembly
- Callies Forged Steel Crank
- 4.750" Stroke
- 6.635" Connecting Rods
- Mahle Forged Pistons
- Internally Balanced Front and Rear
Cam Specs
- Solid Roller Cam
- .874 Intake / .867 Exhaust Lift
- 293 Intake / 305 Exhaust Duration
- @.050-110 Degree Lobe Separation
Stall Converter
3800-4200 RPM
Also Includes
- 1475cfm Gen III Holley Ultra Dominator Carburetor
- BluePrint Engines Intake Manifold
- Moroso Aluminum Oil Pan
- MSD Pro Billet Distributor
- SFI Harmonic Balancer
- Spark Plug and Wires
- BluePrint Dipstick
- Timing Cover
Notes
- For racing or extended wide-open throttle use, race fuel (100+ octane) is required.
- BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied.
- Oil Requirements: 20W50

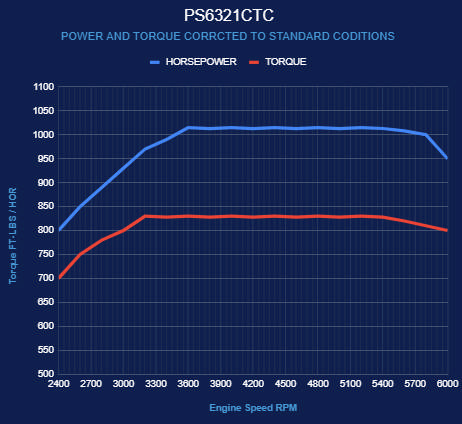

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Parts & Accessories Specs
| Intake Manifold | Single Plane, Satin Aluminum |
|---|---|
| Spark Plug | NGK4644/BKR7E |
| Harmonic Balancer | BP1211SS |
| Flexplate/Flywheel (Not Included) | BPP168T2P - BPP460130 |
| Fuel Recommendation | Street Use Engines 93+ / Race Engines Requires Race Fuel of 100+ Octane |
| Recommended Service Oil | BPP20W50 |
| Recommended Oil Filter | BPP51061 |
| Total Oil Capacity with Production Oil Pan, and Correct Filter | 8 Quarts |
